Categories	Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Datasheet	LMB2S Thru LMB10S
Standard Package	5000
Manufacturer	Micro Commercial Co
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Single Phase
Technology	Standard
Voltage - Peak Reverse (Max)	1kV
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	950mV @ 400mA
Current - Reverse Leakage @ Vr	5µA @ 1000V
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	LMBS-1
Base Part Number	LMB10

RDBF2510-13	Diodes Incorporated, Bridge Rectifier Single Phase Standard 1kV Surface Mount DBF,	View
BAS4002ARPPE6327HTSA1	Infineon Technologies, Bridge Rectifier Single Phase Standard 40V Surface Mount PG-SOT143-4,	View
MDB10S	ON Semiconductor, Bridge Rectifier Single Phase Standard 1kV Surface Mount 4-MicroDIP/SMD,	View
CDBHM2100L-HF	Comchip Technology, Bridge Rectifier Single Phase Schottky 100V Surface Mount MBS-2,	View
RABF210-13	Diodes Incorporated, Bridge Rectifier Single Phase Standard 1kV Surface Mount 4-SOPA,	View
DF206ST-G	Comchip Technology, Bridge Rectifier Single Phase Standard 600V Surface Mount DFS,	View
MB4S	ON Semiconductor, Bridge Rectifier Single Phase Standard 400V Surface Mount 4-SOIC,	View
MDB10S	ON Semiconductor, Bridge Rectifier Single Phase Standard 1kV Surface Mount 4-MicroDIP/SMD,	View
FTB10F-15FTR	SMC Diode Solutions, Bridge Rectifier Single Phase Standard 1kV Surface Mount ABF,	View
NSR1030QMUTWG	ON Semiconductor, Bridge Rectifier Single Phase Schottky 30V Surface Mount 4-UDFN (3x3),	View
DBLS159G RDG	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 1.4kV Surface Mount DBLS,	View
DF210ST-G	Comchip Technology, Bridge Rectifier Single Phase Standard 1kV Surface Mount DFS,	View

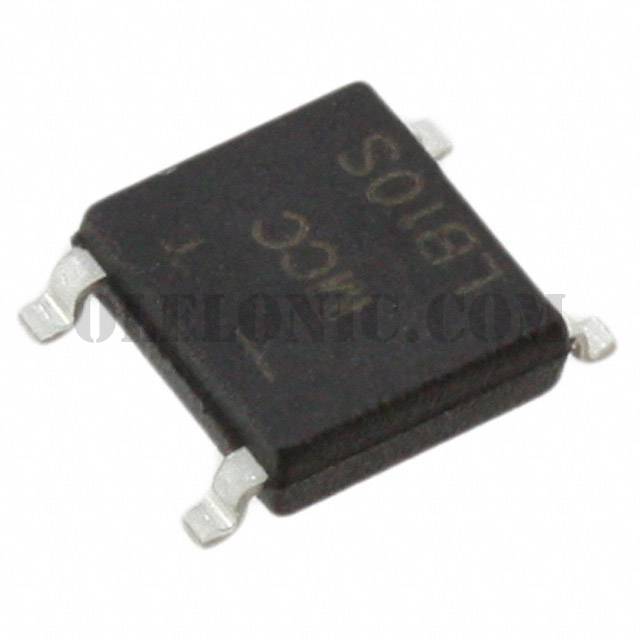

LMB10S-TP
