LSIC1MO120E0080

Part NumberLSIC1MO120E0080

ManufacturerLittelfuse Inc.

DescriptionMOSFET SIC 1200V 39A TO247-3

DatasheetLSIC1MO120E0080 Datasheet

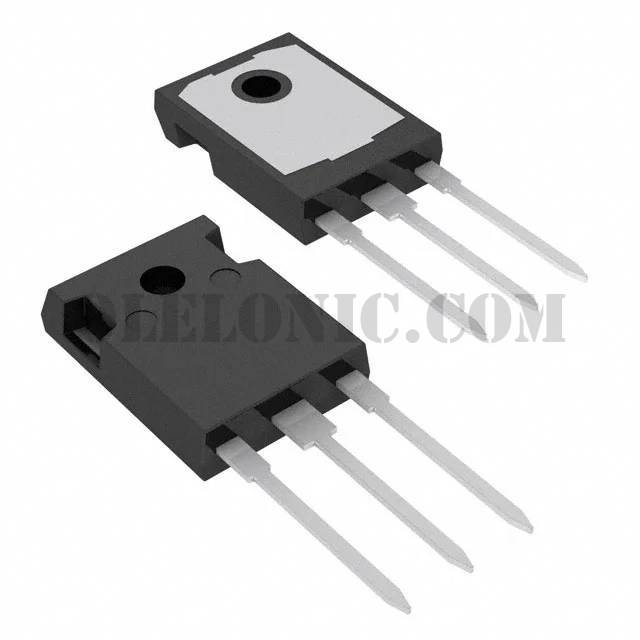

Package / CaseTO-247-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 1200V 39A (Tc) 179W (Tc) Through Hole TO-247-3

To learn about the specification of LSIC1MO120E0080, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add LSIC1MO120E0080 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of LSIC1MO120E0080.
We are offering LSIC1MO120E0080 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

LSIC1MO120E0080 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	LSIC1MO120E0080 Datasheet
Standard Package	450
Manufacturer	Littelfuse Inc.
Series	-
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)	1200V
Current - Continuous Drain (Id) @ 25°C	39A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	20V
Rds On (Max) @ Id, Vgs	100mOhm @ 20A, 20V
Vgs(th) (Max) @ Id	4V @ 10mA
Gate Charge (Qg) (Max) @ Vgs	95nC @ 20V
Vgs (Max)	+22V, -6V
Input Capacitance (Ciss) (Max) @ Vds	1825pF @ 800V
FET Feature	-
Power Dissipation (Max)	179W (Tc)
Operating Temperature	-55°C ~ 150°C
Mounting Type	Through Hole
Supplier Device Package	TO-247-3
Package / Case	TO-247-3
