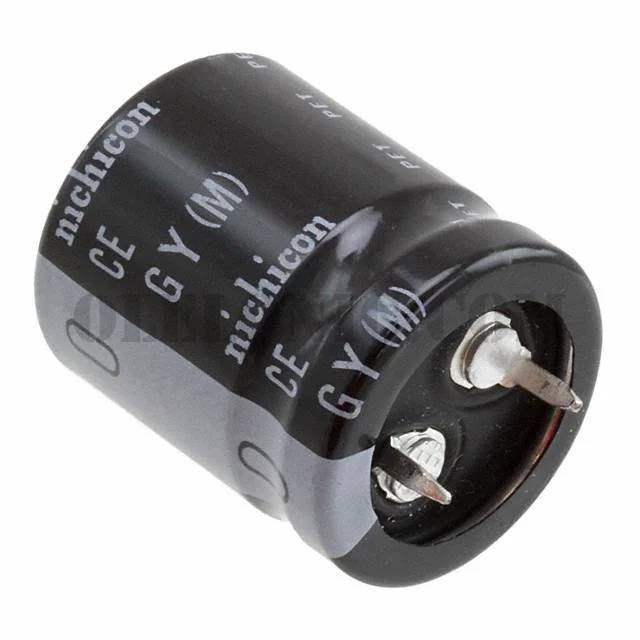

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	LGY Series
Standard Package	250
Manufacturer	Nichicon
Series	LGY
Packaging	Bulk
Part Status	Active
Capacitance	2200µF
Tolerance	±20%
Voltage - Rated	50V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.4A @ 120Hz
Ripple Current @ High Frequency	1.61A @ 50kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	0.866" Dia (22.00mm)
Height - Seated (Max)	1.063" (27.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In

LGY1E103MELZ40	Nichicon, 10000µF 25V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C, LGY	View
LGY1H562MELZ50	Nichicon, 5600µF 50V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C, LGY	View
LGY2A152MELA40	Nichicon, 1500µF 100V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C, LGY	View
LGY1C822MELZ30	Nichicon, 8200µF 16V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C, LGY	View
LGY2A561MELZ25	Nichicon, 560µF 100V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C, LGY	View
LGY1V562MELA30	Nichicon, 5600µF 35V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C, LGY	View
LGY1C333MELB45	Nichicon, 33000µF 16V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C, LGY	View
LGY1E273MELC45	Nichicon, 27000µF 25V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C, LGY	View
LGY1V822MELA40	Nichicon, 8200µF 35V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C, LGY	View
LGY1C153MELA35	Nichicon, 15000µF 16V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C, LGY	View
LGY1H822MELC35	Nichicon, 8200µF 50V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C, LGY	View
LGY1K122MELA25	Nichicon, 1200µF 80V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C, LGY	View

LGY1H222MELZ25

Part NumberLGY1H222MELZ25
