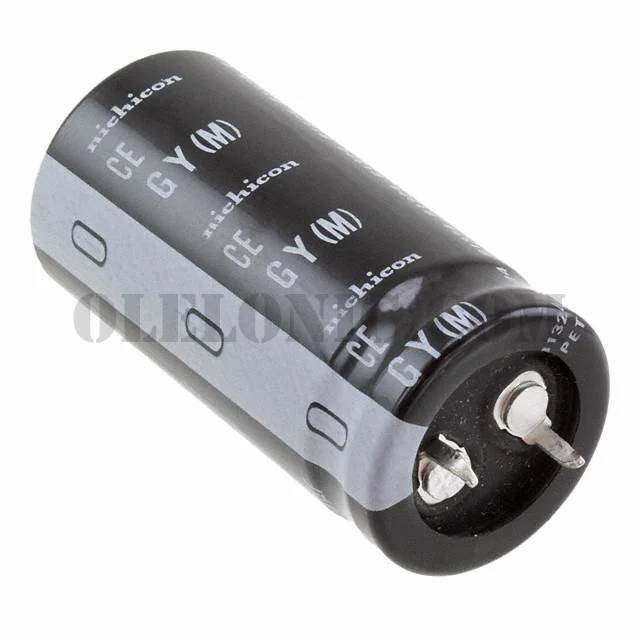

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	LGY Series
Standard Package	250
Manufacturer	Nichicon
Series	LGY
Packaging	Bulk
Part Status	Active
Capacitance	2200µF
Tolerance	±20%
Voltage - Rated	80V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	2A @ 120Hz
Ripple Current @ High Frequency	2.3A @ 50kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	0.866" Dia (22.00mm)
Height - Seated (Max)	1.850" (47.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In

LGY1K122MELZ30	Nichicon, 1200µF 80V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C, LGY	View
LGY2A152MELA40	Nichicon, 1500µF 100V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C, LGY	View
LGY1K152MELA25	Nichicon, 1500µF 80V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C, LGY	View
LGY1V103MELA45	Nichicon, 10000µF 35V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C, LGY	View
LGY1E103MELZ40	Nichicon, 10000µF 25V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C, LGY	View
LGY1H332MELA30	Nichicon, 3300µF 50V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C, LGY	View
LGY1K472MELB45	Nichicon, 4700µF 80V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C, LGY	View
LGY1E153MELC30	Nichicon, 15000µF 25V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C, LGY	View
LGY1C822MELZ30	Nichicon, 8200µF 16V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C, LGY	View
LGY1C103MELZ30	Nichicon, 10000µF 16V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C, LGY	View
LGY2A102MELZ35	Nichicon, 1000µF 100V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C, LGY	View
LGY1E333MELC50	Nichicon, 33000µF 25V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C, LGY	View

LGY1K222MELZ45

Part NumberLGY1K222MELZ45
