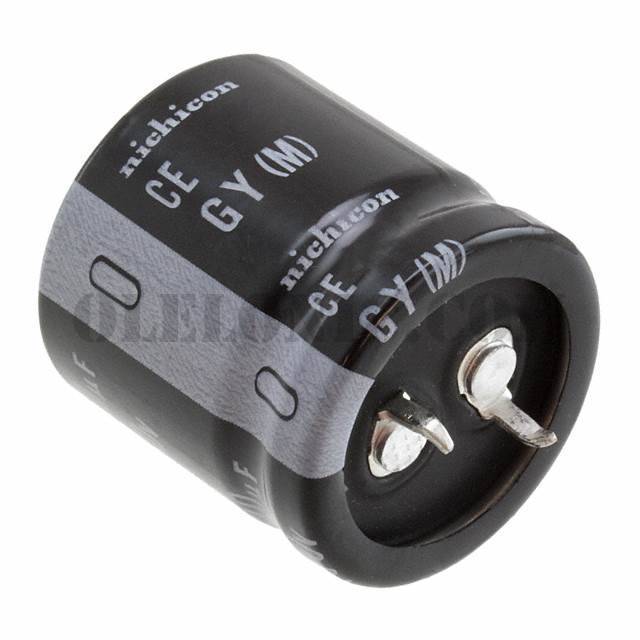

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	LGY Series
Standard Package	250
Manufacturer	Nichicon
Series	LGY
Packaging	Bulk
Part Status	Active
Capacitance	1500µF
Tolerance	±20%
Voltage - Rated	63V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.5A @ 120Hz
Ripple Current @ High Frequency	1.725A @ 50kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	0.984" Dia (25.00mm)
Height - Seated (Max)	1.063" (27.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In

LGY1V822MELB30	Nichicon, 8200µF 35V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C, LGY	View
LGY2A222MELB40	Nichicon, 2200µF 100V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C, LGY	View
LGY1C103MELZ30	Nichicon, 10000µF 16V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C, LGY	View
LGY1E103MELA35	Nichicon, 10000µF 25V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C, LGY	View
LGY1K392MELB40	Nichicon, 3900µF 80V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C, LGY	View
LGY1V123MELA50	Nichicon, 12000µF 35V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C, LGY	View
LGY1K472MELB45	Nichicon, 4700µF 80V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C, LGY	View
LGY1H272MELA25	Nichicon, 2700µF 50V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C, LGY	View
LGY1H822MELB40	Nichicon, 8200µF 50V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C, LGY	View
LGY1H332MELA30	Nichicon, 3300µF 50V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C, LGY	View
LGY1J103MELC50	Nichicon, 10000µF 63V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C, LGY	View
LGY1H103MELB50	Nichicon, 10000µF 50V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C, LGY	View

LGY1J152MELA25

Part NumberLGY1J152MELA25
