Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	LGL Series
Standard Package	250
Manufacturer	Nichicon
Series	LGL
Packaging	Bulk
Part Status	Active
Capacitance	270µF
Tolerance	±20%
Voltage - Rated	400V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	910mA @ 120Hz
Ripple Current @ High Frequency	1.3013A @ 50kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	0.984" Dia (25.00mm)
Height - Seated (Max)	1.260" (32.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole

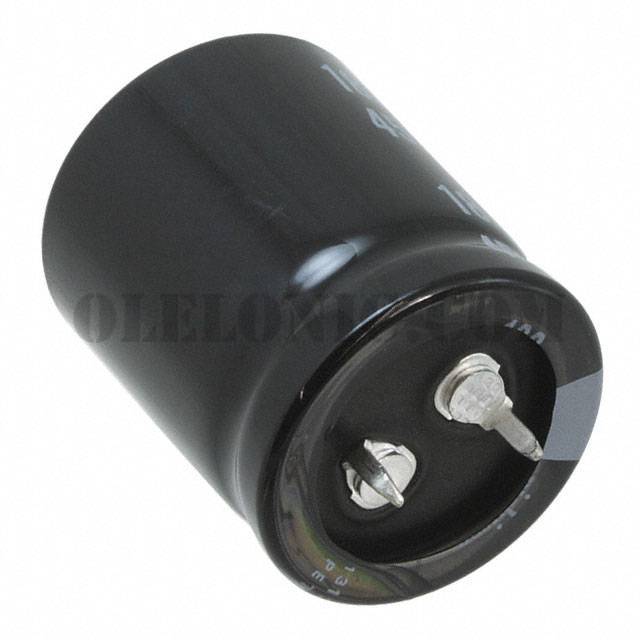

Package / Case	Radial, Can - Snap-In

LGL2G821MELC40	Nichicon, 820µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGL	View
LGL2G271MELA30	Nichicon, 270µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGL	View
LGL2G221MELZ30	Nichicon, 220µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGL	View
LGL2G821MELB50	Nichicon, 820µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGL	View
LGL2G102MELC50	Nichicon, 1000µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGL	View
LGL2G331MELZ45	Nichicon, 330µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGL	View
LGL2W561MELC40	Nichicon, 560µF 450V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGL	View
LGL2G331MELA35	Nichicon, 330µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGL	View
LGL2W271MELZ45	Nichicon, 270µF 450V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGL	View
LGL2W121MELZ25	Nichicon, 120µF 450V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGL	View
LGL2W561MELB50	Nichicon, 560µF 450V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGL	View
LGL2W681MELC45	Nichicon, 680µF 450V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGL	View

LGL2G271MELA30

Part NumberLGL2G271MELA30
