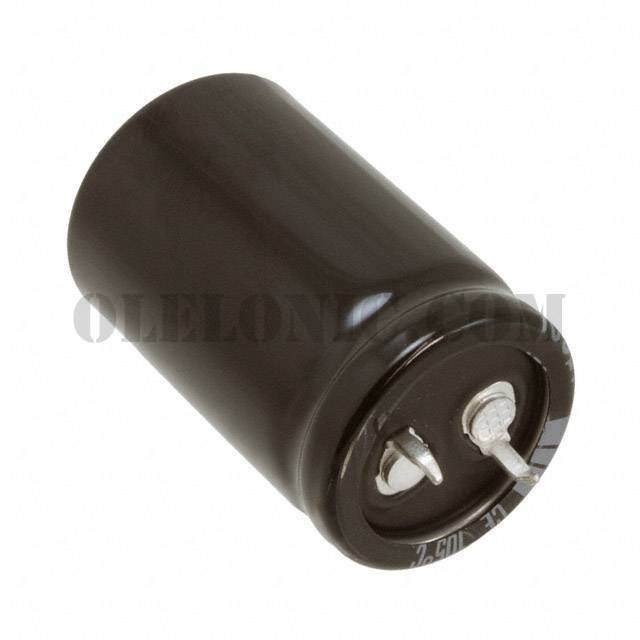

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	LGL Series
Standard Package	250
Manufacturer	Nichicon
Series	LGL
Packaging	Bulk
Part Status	Active
Capacitance	270µF
Tolerance	±20%
Voltage - Rated	400V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	910mA @ 120Hz
Ripple Current @ High Frequency	1.3013A @ 50kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	0.866" Dia (22.00mm)
Height - Seated (Max)	1.457" (37.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In

LGL2G391MELB30	Nichicon, 390µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGL	View
LGL2W331MELB35	Nichicon, 330µF 450V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGL	View
LGL2G391MELZ50	Nichicon, 390µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGL	View
LGL2W681MELC45	Nichicon, 680µF 450V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGL	View
LGL2G102MELC50	Nichicon, 1000µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGL	View
LGL2W151MELA25	Nichicon, 150µF 450V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGL	View
LGL2W561MELC40	Nichicon, 560µF 450V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGL	View
LGL2G681MELB45	Nichicon, 680µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGL	View
LGL2G561MELB40	Nichicon, 560µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGL	View
LGL2G151MELZ25	Nichicon, 150µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGL	View
LGL2G561MELC30	Nichicon, 560µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGL	View
LGL2G821MELC40	Nichicon, 820µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGL	View

LGL2G271MELZ35

Part NumberLGL2G271MELZ35
