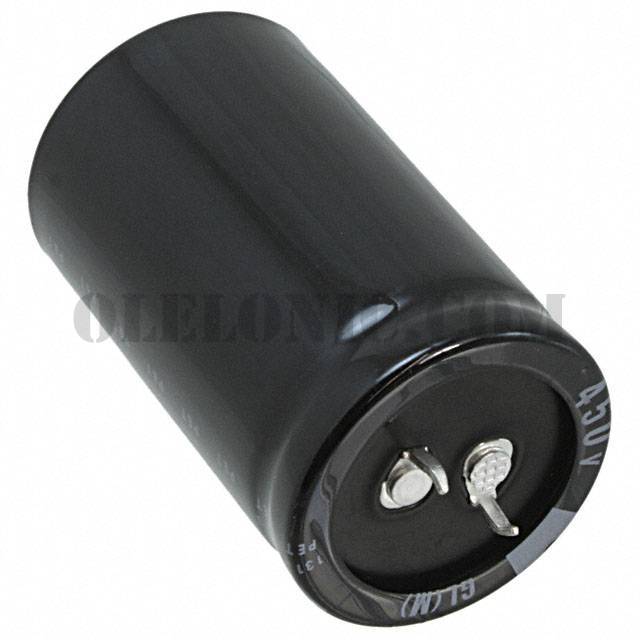

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	LGL Series
Standard Package	200
Manufacturer	Nichicon
Series	LGL
Packaging	Bulk
Part Status	Active
Capacitance	560µF
Tolerance	±20%
Voltage - Rated	450V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.66A @ 120Hz
Ripple Current @ High Frequency	2.3738A @ 50kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	1.181" Dia (30.00mm)
Height - Seated (Max)	2.047" (52.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In

LGL2W121MELZ25	Nichicon, 120µF 450V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGL	View
LGL2G471MELA45	Nichicon, 470µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGL	View
LGL2W331MELB35	Nichicon, 330µF 450V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGL	View
LGL2W681MELC45	Nichicon, 680µF 450V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGL	View
LGL2G681MELC35	Nichicon, 680µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGL	View
LGL2W221MELA35	Nichicon, 220µF 450V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGL	View
LGL2G561MELB40	Nichicon, 560µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGL	View
LGL2W391MELC30	Nichicon, 390µF 450V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGL	View
LGL2W471MELB45	Nichicon, 470µF 450V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGL	View
LGL2G331MELZ45	Nichicon, 330µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGL	View
LGL2G391MELC25	Nichicon, 390µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGL	View
LGL2G821MELB50	Nichicon, 820µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGL	View

LGL2W561MELB50

Part NumberLGL2W561MELB50
