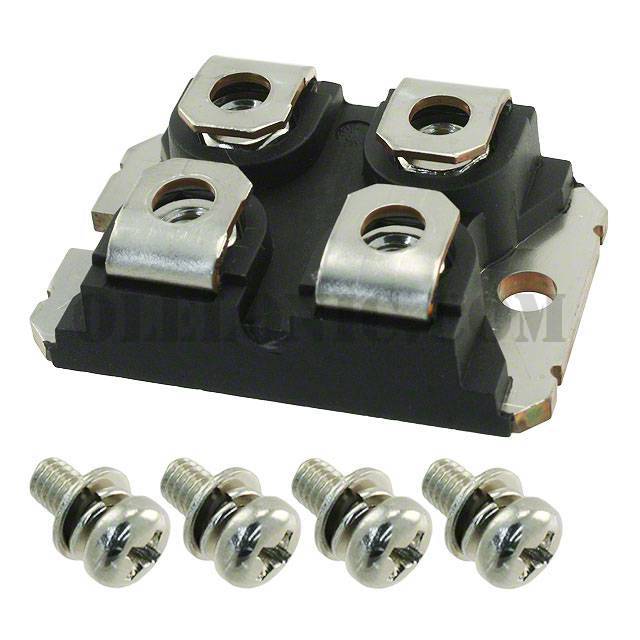

IXTN102N65X2

IXTN102N65X2

Part NumberIXTN102N65X2

ManufacturerIXYS

DescriptionMOSFET N-CH 650V 76A X2 SOT-227

DatasheetIXTN102N65X2

Package / CaseSOT-227-4, miniBLOC

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 650V 76A (Tc) 595AW (Tc) Chassis Mount SOT-227

To learn about the specification of IXTN102N65X2, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IXTN102N65X2 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IXTN102N65X2.
We are offering IXTN102N65X2 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IXTN102N65X2 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IXTN102N65X2
Standard Package	10
Manufacturer	IXYS
Series	-
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	650V
Current - Continuous Drain (Id) @ 25°C	76A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	30mOhm @ 51A, 10V
Vgs(th) (Max) @ Id	5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	152nC @ 10V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	10900pF @ 25V
FET Feature	-
Power Dissipation (Max)	595AW (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Supplier Device Package	SOT-227
Package / Case	SOT-227-4, miniBLOC
