IXGR48N60C3D1
IXGR48N60C3D1

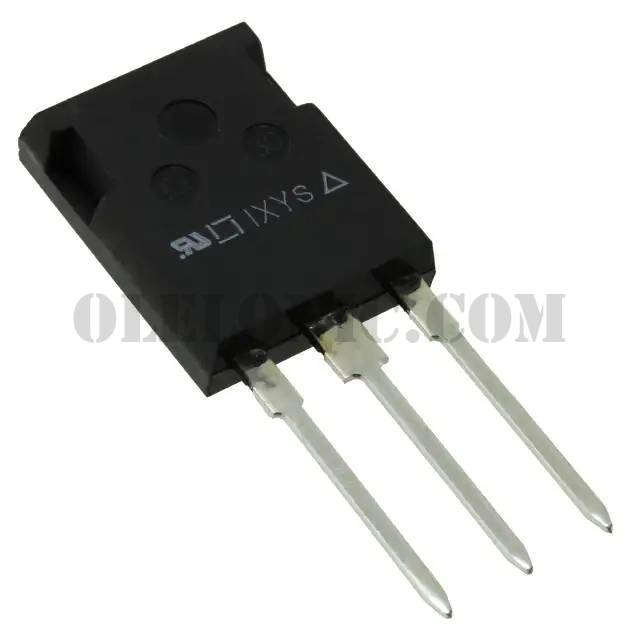

Part Number IXGR48N60C3D1 Manufacturer IXYS Description IGBT 600V 56A 125W ISOPLUS247 Package / Case ISOPLUS247™Unit Price Request a QuoteLead Time To be ConfirmedDetailed Description IGBT PT 600V 56A 125W Through Hole ISOPLUS247™
To learn about the specification of IXGR48N60C3D1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IXGR48N60C3D1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IXGR48N60C3D1.
We are offering IXGR48N60C3D1 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
IXGR48N60C3D1 - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet IXGR48N60C3D1 Standard Package 30 Manufacturer IXYS Series GenX3™ Packaging Tube Part Status Active IGBT Type PT Voltage - Collector Emitter Breakdown (Max) 600V Current - Collector (Ic) (Max) 56A Current - Collector Pulsed (Icm) 230A Vce(on) (Max) @ Vge, Ic 2.7V @ 15V, 30A Power - Max 125W Switching Energy 410µJ (on), 230µJ (off) Input Type Standard Gate Charge 77nC Td (on/off) @ 25°C 19ns/60ns Test Condition 400V, 30A, 3Ohm, 15V Reverse Recovery Time (trr) 25ns Operating Temperature -55°C ~ 150°C (TJ) Mounting Type Through Hole Package / Case ISOPLUS247™ Supplier Device Package ISOPLUS247™ Base Part Number IXG*48N60
