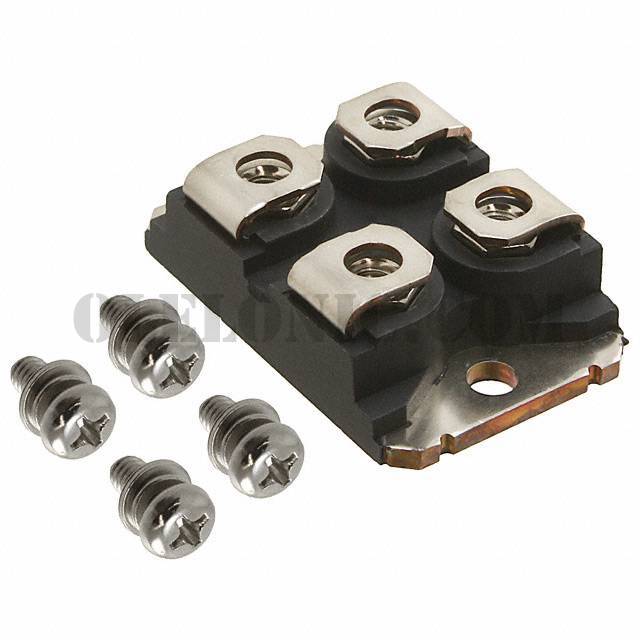

IXGN320N60A3

IXGN320N60A3

Part NumberIXGN320N60A3

ManufacturerIXYS

DescriptionIGBT 600V SOT-227B

DatasheetIXGN320N60A3

Package / CaseSOT-227-4, miniBLOC

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module PT Single 600V 320A 735W Chassis Mount SOT-227B

To learn about the specification of IXGN320N60A3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IXGN320N60A3 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IXGN320N60A3.
We are offering IXGN320N60A3 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IXGN320N60A3 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - IGBTs - Modules
Datasheet	IXGN320N60A3
Standard Package	10
Manufacturer	IXYS
Series	GenX3™
Part Status	Active
IGBT Type	PT
Configuration	Single
Voltage - Collector Emitter Breakdown (Max)	600V
Current - Collector (Ic) (Max)	320A
Power - Max	735W
Vce(on) (Max) @ Vge, Ic	1.25V @ 15V, 100A
Current - Collector Cutoff (Max)	150µA
Input Capacitance (Cies) @ Vce	18nF @ 25V
Input	Standard
NTC Thermistor	No
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Package / Case	SOT-227-4, miniBLOC
Supplier Device Package	SOT-227B

IXGN320N60A3 - Related Products

	IXGN320N60A3	IXYS, IGBT Module PT Single 600V 320A 735W Chassis Mount SOT-227B, GenX3™	View
	IXGN120N60A3D1	IXYS, IGBT Module PT Single 600V 200A 595W Chassis Mount SOT-227B, GenX3™	View
	IXGN200N60B3	IXYS, IGBT Module PT Single 600V 300A 830W Chassis Mount SOT-227B, GenX3™	View
