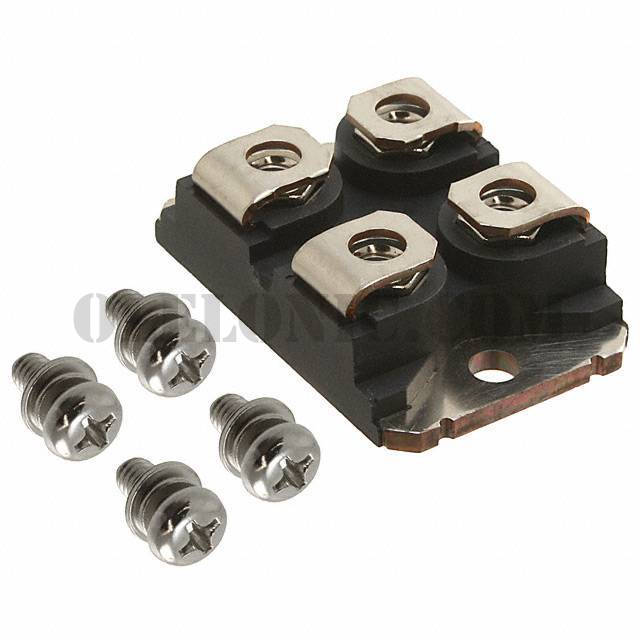

IXGN200N60B3

IXGN200N60B3

Part NumberIXGN200N60B3

ManufacturerIXYS

DescriptionIGBT 300A 600V SOT-227B

DatasheetIXGN200N60B3

Package / CaseSOT-227-4, miniBLOC

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module PT Single 600V 300A 830W Chassis Mount SOT-227B

To learn about the specification of IXGN200N60B3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IXGN200N60B3 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IXGN200N60B3.
We are offering IXGN200N60B3 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IXGN200N60B3 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - IGBTs - Modules
Datasheet	IXGN200N60B3
Standard Package	10
Manufacturer	IXYS
Series	GenX3™
Part Status	Active
IGBT Type	PT
Configuration	Single
Voltage - Collector Emitter Breakdown (Max)	600V
Current - Collector (Ic) (Max)	300A
Power - Max	830W
Vce(on) (Max) @ Vge, Ic	1.5V @ 15V, 100A
Current - Collector Cutoff (Max)	50µA
Input Capacitance (Cies) @ Vce	26nF @ 25V
Input	Standard
NTC Thermistor	No
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Package / Case	SOT-227-4, miniBLOC
Supplier Device Package	SOT-227B
Base Part Number	IXG*200N60
