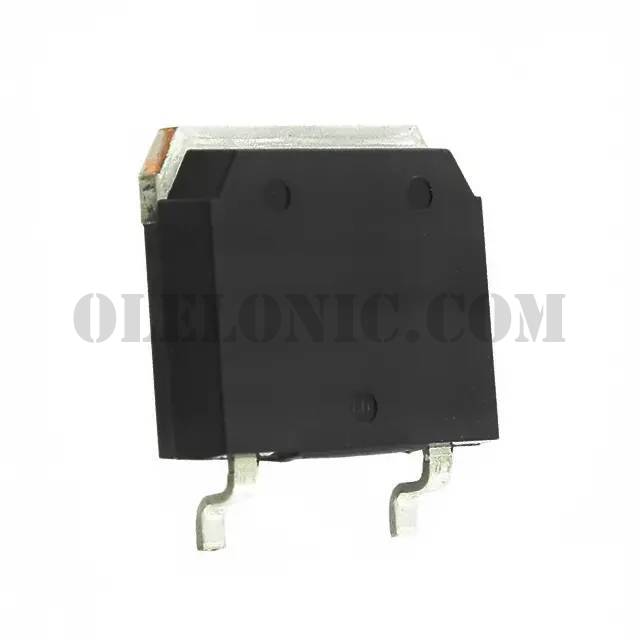

IXFT6N100F

IXFT6N100F

Part NumberIXFT6N100F

ManufacturerIXYS-RF

DescriptionMOSFET N-CH 1000V 6A TO268

DatasheetIXFH6N100F, IXFT6N100F

Package / CaseTO-268-3, D³Pak (2 Leads + Tab), TO-268AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 1000V 6A (Tc) 180W (Tc) Surface Mount TO-268 (IXFT)

To learn about the specification of IXFT6N100F, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IXFT6N100F with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IXFT6N100F.
We are offering IXFT6N100F for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IXFT6N100F - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IXFH6N100F, IXFT6N100F
Standard Package	30
Manufacturer	IXYS-RF
Series	HiPerRF™
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	1000V
Current - Continuous Drain (Id) @ 25°C	6A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	1.9Ohm @ 3A, 10V
Vgs(th) (Max) @ Id	5.5V @ 2.5mA
Gate Charge (Qg) (Max) @ Vgs	54nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1770pF @ 25V
FET Feature	-
Power Dissipation (Max)	180W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-268 (IXFT)
Package / Case	TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
