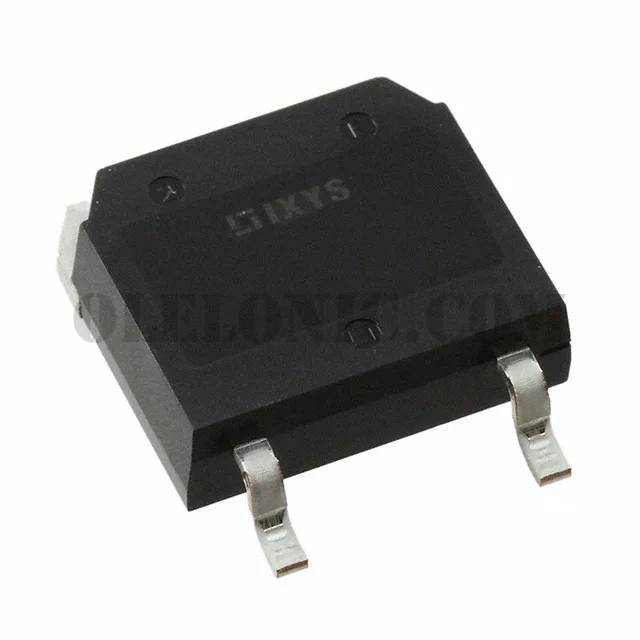

IXFT220N20X3HV

IXFT220N20X3HV

Part NumberIXFT220N20X3HV

ManufacturerIXYS

Description200V/220A ULTRA JUNCTION X3-CLAS

DatasheetIXFx220N20X3(HV)

Package / CaseTO-268-3, D³Pak (2 Leads + Tab), TO-268AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 200V 220A (Tc) 960W (Tc) Surface Mount TO-268HV

To learn about the specification of IXFT220N20X3HV, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IXFT220N20X3HV with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IXFT220N20X3HV.
We are offering IXFT220N20X3HV for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IXFT220N20X3HV - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IXFx220N20X3(HV)
Standard Package	30
Manufacturer	IXYS
Series	HiPerFET™
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	200V
Current - Continuous Drain (Id) @ 25°C	220A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	6.2mOhm @ 110A, 10V
Vgs(th) (Max) @ Id	4.5V @ 4mA
Gate Charge (Qg) (Max) @ Vgs	204nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	13600pF @ 25V
FET Feature	-
Power Dissipation (Max)	960W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-268HV
Package / Case	TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
