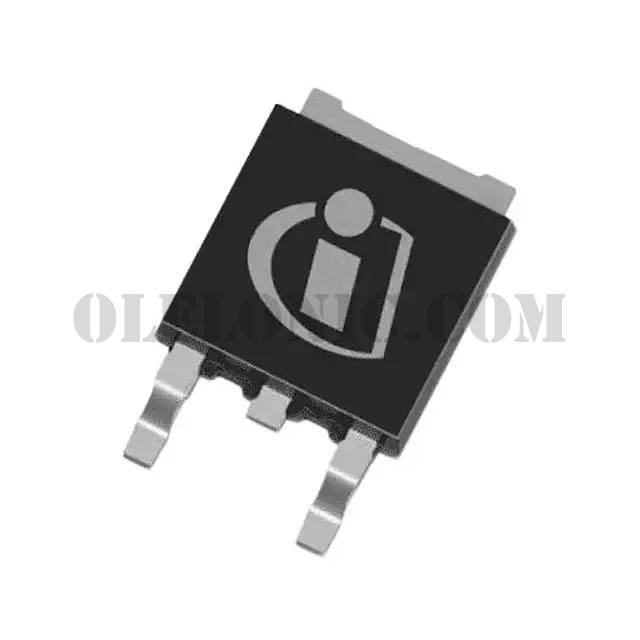

IPD60R360P7ATMA1

IPD60R360P7ATMA1

Part NumberIPD60R360P7ATMA1

ManufacturerInfineon Technologies

DescriptionMOSFET N-CH 650V 9A TO252-3

DatasheetIPD60R360P7

Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 650V 9A (Tc) 41W (Tc) Surface Mount PG-TO252-3

To learn about the specification of IPD60R360P7ATMA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IPD60R360P7ATMA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IPD60R360P7ATMA1.
We are offering IPD60R360P7ATMA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IPD60R360P7ATMA1 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IPD60R360P7
Standard Package	1
Manufacturer	Infineon Technologies
Series	CoolMOS™ P7
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	650V
Current - Continuous Drain (Id) @ 25°C	9A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	360mOhm @ 2.7A, 10V
Vgs(th) (Max) @ Id	4V @ 140µA
Gate Charge (Qg) (Max) @ Vgs	13nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	555pF @ 400V
FET Feature	-
Power Dissipation (Max)	41W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-TO252-3
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
