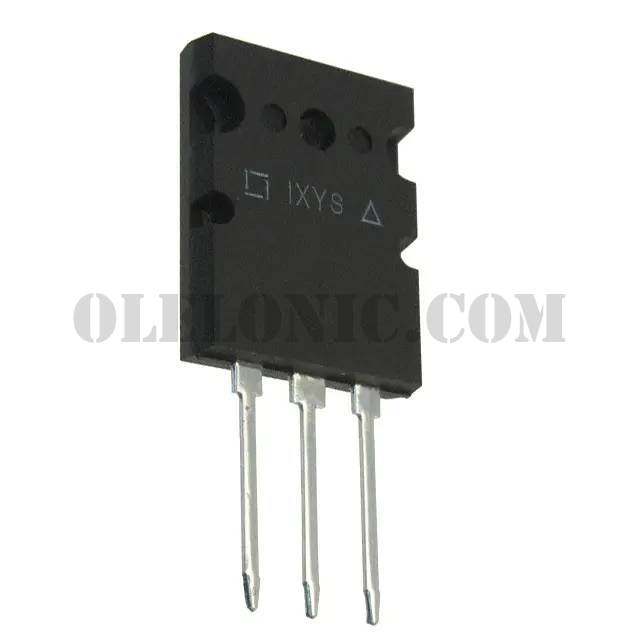

IXFK55N50F

IXFK55N50F

Part NumberIXFK55N50F

ManufacturerIXYS-RF

DescriptionMOSFET N-CH 500V 55A TO264

DatasheetIXF(K,X)55N50F

Package / CaseTO-264-3, TO-264AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 500V 55A (Tc) 560W (Tc) Through Hole TO-264 (IXFK)

To learn about the specification of IXFK55N50F, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IXFK55N50F with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IXFK55N50F.
We are offering IXFK55N50F for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IXFK55N50F - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IXF(K,X)55N50F
Standard Package	25
Manufacturer	IXYS-RF
Series	HiPerRF™
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	500V
Current - Continuous Drain (Id) @ 25°C	55A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	85mOhm @ 27.5A, 10V
Vgs(th) (Max) @ Id	5.5V @ 8mA
Gate Charge (Qg) (Max) @ Vgs	195nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	6700pF @ 25V
FET Feature	-
Power Dissipation (Max)	560W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-264 (IXFK)
Package / Case	TO-264-3, TO-264AA
