Categories	Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet	ISL9V5036P3-F085
Standard Package	400
Manufacturer	ON Semiconductor
Series	Automotive, AEC-Q101, EcoSPARK®
Packaging	Tube
Part Status	Active
IGBT Type	-
Voltage - Collector Emitter Breakdown (Max)	390V
Current - Collector (Ic) (Max)	46A
Vce(on) (Max) @ Vge, Ic	1.6V @ 4V, 10A
Power - Max	250W
Switching Energy	-
Input Type	Logic
Gate Charge	32nC
Td (on/off) @ 25°C	-/10.8µs
Test Condition	300V, 1kOhm, 5V
Operating Temperature	-40°C ~ 175°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-220-3
Supplier Device Package	TO-220-3
Base Part Number	ISL9V5036

FGD3440G2-F085	ON Semiconductor, IGBT 400V 26.9A 166W Surface Mount TO-252AA, Automotive, AEC-Q101, EcoSPARK®	View
FGD2736G3-F085	ON Semiconductor, IGBT 360V 21A 150W Surface Mount TO-252, (D-Pak), EcoSPARK®	View
NGD8201ANT4G	Littelfuse Inc., IGBT 440V 20A 125W Surface Mount DPAK,	View
ISL9V3040S3ST	ON Semiconductor, IGBT 430V 21A 150W Surface Mount TO-263AB, EcoSPARK®	View
NGB8204ANT4G	Littelfuse Inc., IGBT 430V 18A 115W Surface Mount D2PAK,	View
NGD18N45CLBT4G	Littelfuse Inc., IGBT 500V 18A 115W Surface Mount DPAK,	View
STGB18N40LZT4	STMicroelectronics, IGBT 420V 30A 150W Surface Mount D2PAK, PowerMESH™	View
NGB8207BNT4G	Littelfuse Inc., IGBT 365V 20A 165W Surface Mount D2PAK,	View
STGB25N40LZAG	STMicroelectronics, IGBT 435V 25A 150W Surface Mount D²PAK, Automotive, AEC-Q101	View
ISL9V3040P3	ON Semiconductor, IGBT 430V 21A 150W Through Hole TO-220-3, EcoSPARK®	View
ISL9V3040D3ST	ON Semiconductor, IGBT 430V 21A 150W Surface Mount TO-252AA, EcoSPARK®	View
STGD18N40LZT4	STMicroelectronics, IGBT 420V 25A 125W Surface Mount DPAK, Automotive, AEC-Q101, PowerMESH™	View

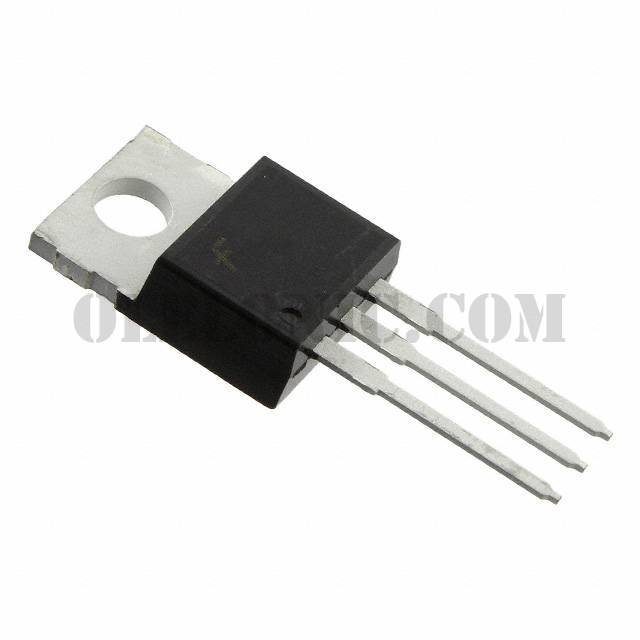

ISL9V5036P3-F085
