Categories	Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet	STGx25N40LZAG
Standard Package	1
Manufacturer	STMicroelectronics
Series	Automotive, AEC-Q101
Packaging	Cut Tape (CT)
Part Status	Active
IGBT Type	-
Voltage - Collector Emitter Breakdown (Max)	435V
Current - Collector (Ic) (Max)	25A
Current - Collector Pulsed (Icm)	50A
Vce(on) (Max) @ Vge, Ic	1.25V @ 4V, 6A
Power - Max	125W
Switching Energy	-
Input Type	Logic
Gate Charge	26nC
Td (on/off) @ 25°C	1.1µs/4.6µs
Test Condition	300V, 10A, 1kOhm, 5V
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount

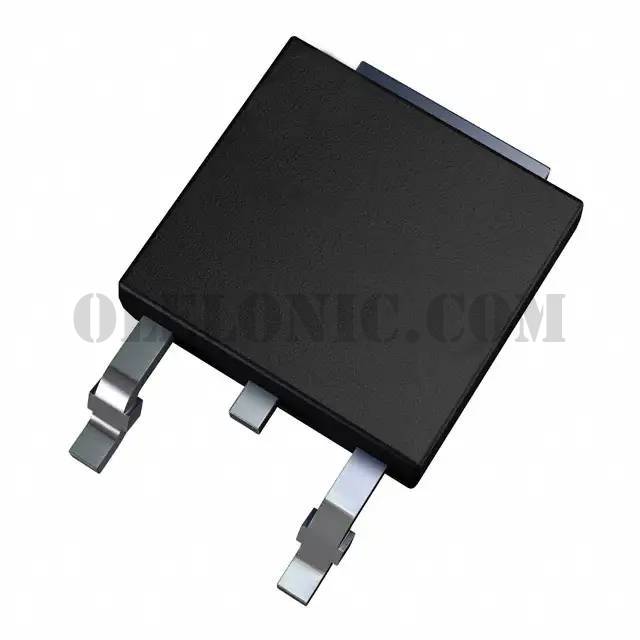

Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package	DPAK
