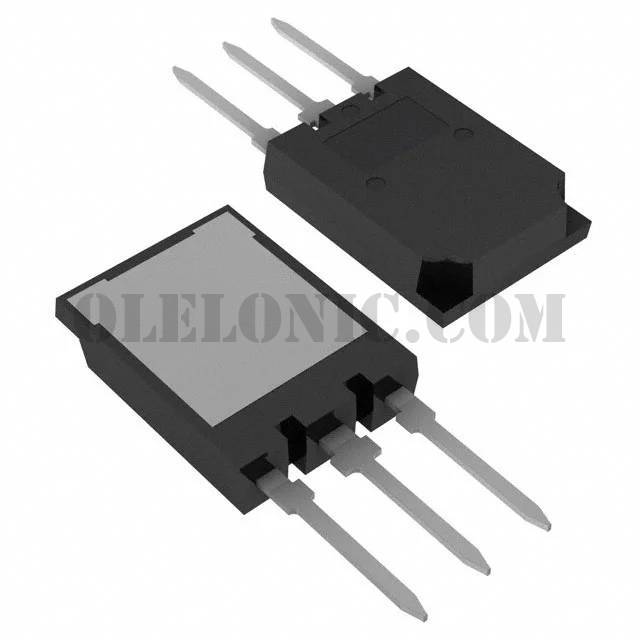

IRGPS46160DPBF

IRGPS46160DPBF

Part NumberIRGPS46160DPBF

ManufacturerInfineon Technologies

DescriptionIGBT 600V 240A 750W SUPER247

DatasheetIRGPS46160DPbF

Package / CaseTO-247-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT 600V 240A 750W Through Hole SUPER-247™ (TO-274AA)

To learn about the specification of IRGPS46160DPBF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IRGPS46160DPBF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IRGPS46160DPBF.
We are offering IRGPS46160DPBF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IRGPS46160DPBF - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet	IRGPS46160DPbF
Standard Package	25
Manufacturer	Infineon Technologies
Series	-
Packaging	Tube
Part Status	Active
IGBT Type	-
Voltage - Collector Emitter Breakdown (Max)	600V
Current - Collector (Ic) (Max)	240A
Current - Collector Pulsed (Icm)	360A
Vce(on) (Max) @ Vge, Ic	2.05V @ 15V, 120A
Power - Max	750W
Switching Energy	5.75mJ (on), 3.43mJ (off)
Input Type	Standard
Gate Charge	240nC
Td (on/off) @ 25°C	80ns/190ns
Test Condition	400V, 120A, 4.7Ohm, 15V
Reverse Recovery Time (trr)	130ns
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-247-3
Supplier Device Package	SUPER-247™ (TO-274AA)
