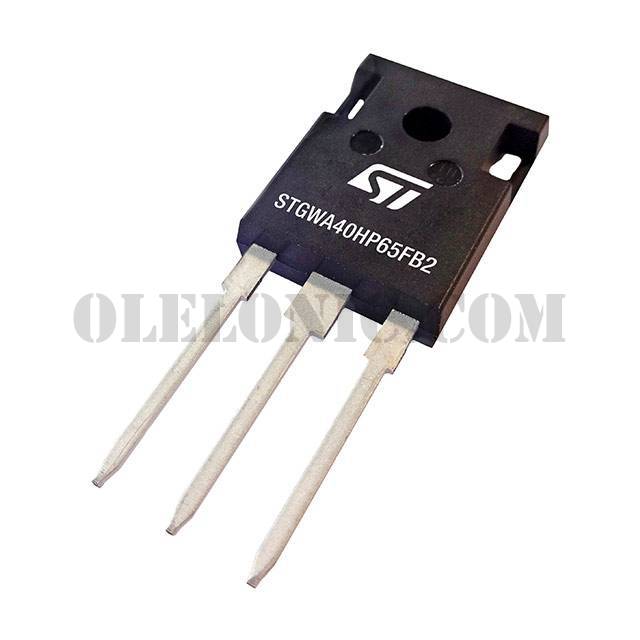

STGWA40HP65FB2

STGWA40HP65FB2

Part NumberSTGWA40HP65FB2

ManufacturerSTMicroelectronics

DescriptionTRENCH GATE FIELD-STOP, 650 V, 4

DatasheetSTGWA40HP65FB2

Package / CaseTO-247-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Trench Field Stop 650V 72A 227W Through Hole TO-247 Long Leads

To learn about the specification of STGWA40HP65FB2, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STGWA40HP65FB2 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STGWA40HP65FB2.
We are offering STGWA40HP65FB2 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

STGWA40HP65FB2 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet	STGWA40HP65FB2
Standard Package	600
Manufacturer	STMicroelectronics
Series	HB2
Part Status	Active
IGBT Type	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max)	650V
Current - Collector (Ic) (Max)	72A
Current - Collector Pulsed (Icm)	120A
Vce(on) (Max) @ Vge, Ic	2V @ 15V, 40A
Power - Max	227W
Switching Energy	410µJ (off)
Input Type	Standard
Gate Charge	153nC
Td (on/off) @ 25°C	-/125ns
Test Condition	400V, 40A, 4.7Ohm, 15V
Reverse Recovery Time (trr)	140ns
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-247-3
Supplier Device Package	TO-247 Long Leads
