Categories	Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet	AFGHL40T65SPD
Standard Package	450
Manufacturer	ON Semiconductor
Series	Automotive, AEC-Q101
Packaging	Tube
Part Status	Active
IGBT Type	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max)	650V
Current - Collector (Ic) (Max)	80A
Current - Collector Pulsed (Icm)	120A
Vce(on) (Max) @ Vge, Ic	2.4V @ 15V, 40A
Power - Max	267W
Switching Energy	1.16MJ (on), 270µJ (off)
Input Type	Standard
Gate Charge	36nC
Td (on/off) @ 25°C	18ns/35ns
Test Condition	400V, 40A, 6Ohm, 15V
Reverse Recovery Time (trr)	35ns
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-247-3
Supplier Device Package	TO-247-3

RGTH60TK65DGC11	Rohm Semiconductor, IGBT Trench Field Stop 650V 28A 61W Through Hole TO-3PFM,	View
FGH80N60FD2TU	ON Semiconductor, IGBT Field Stop 600V 80A 290W Through Hole TO-247-3,	View
AOTF5B65M1	Alpha & Omega Semiconductor Inc., IGBT 650V 10A 25W Through Hole TO-220, Alpha IGBT™	View
STGWA80H65FB	STMicroelectronics, IGBT Trench Field Stop 650V 120A 469W Through Hole TO-247 Long Leads,	View
IXGF25N250	IXYS, IGBT NPT 2500V 30A 114W Through Hole ISOPLUS i4-PAC™,	View
APT30GP60BDQ1G	Microsemi Corporation, IGBT PT 600V 100A 463W Through Hole TO-247 [B], POWER MOS 7®	View
IGB50N65S5ATMA1	Infineon Technologies, IGBT Trench Field Stop 650V 80A 270W Surface Mount PG-TO263-3, TrenchStop™ 5	View
STGF7NB60SL	STMicroelectronics, IGBT 600V 15A 25W Through Hole TO-220FP, PowerMESH™	View
RGTH40TK65DGC11	Rohm Semiconductor, IGBT Trench Field Stop 650V 23A 56W Through Hole TO-3PFM,	View
RGTH60TK65GC11	Rohm Semiconductor, IGBT Trench Field Stop 650V 28A 61W Through Hole TO-3PFM,	View
IXXX110N65B4H1	IXYS, IGBT PT 650V 240A 880W Through Hole PLUS247™-3, GenX4™, XPT™	View
IKA08N65F5XKSA1	Infineon Technologies, IGBT 650V 10.8A 31.2W Through Hole PG-TO220-3, TrenchStop®	View

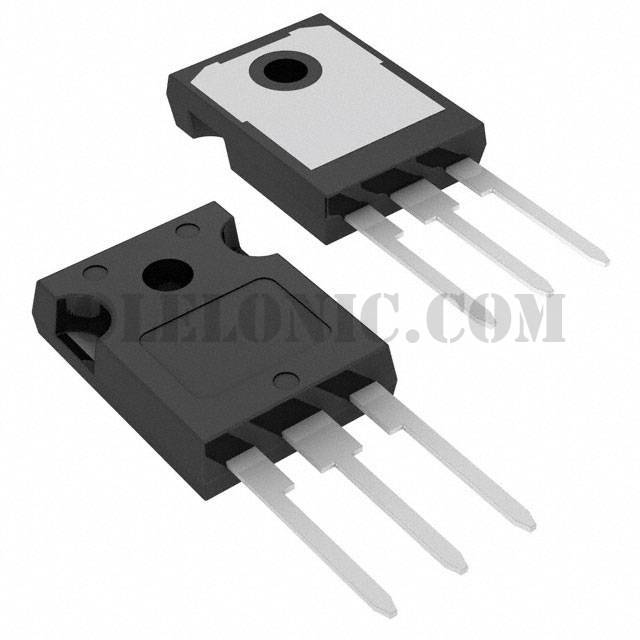

AFGHL40T65SPD
