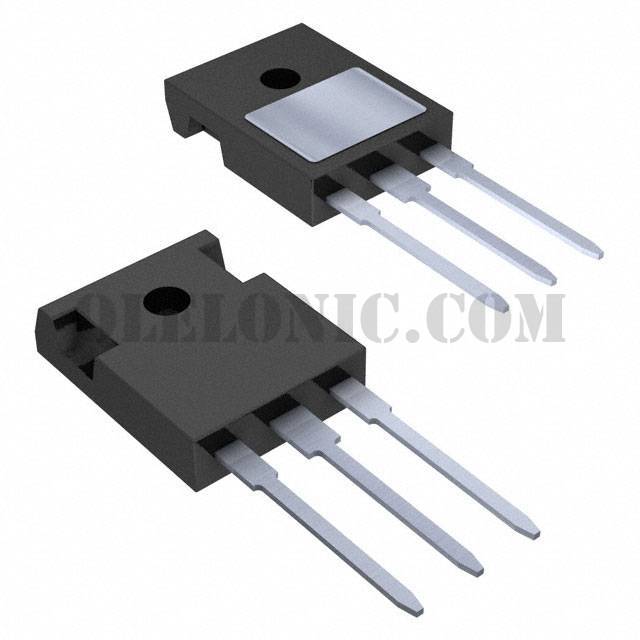

Part Number IXYJ20N120C3D1
Manufacturer IXYS
Description IGBT 1200V 21A 105W TO247
Package / Case TO-247-3
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description IGBT 1200V 21A 105W Through Hole ISO247™
To learn about the specification of IXYJ20N120C3D1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IXYJ20N120C3D1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IXYJ20N120C3D1.
We are offering IXYJ20N120C3D1 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
IXYJ20N120C3D1 - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet IXYJ20N120C3D1 ~
Standard Package 30
Manufacturer IXYS
Series GenX3™, XPT™
Packaging Tube
Part Status Active
IGBT Type -
Voltage - Collector Emitter Breakdown (Max) 1200V
Current - Collector (Ic) (Max) 21A
Current - Collector Pulsed (Icm) 84A
Vce(on) (Max) @ Vge, Ic 3.4V @ 15V, 20A
Power - Max 105W
Switching Energy 1.3mJ (on), 500µJ (off)
Input Type Standard
Gate Charge 53nC
Td (on/off) @ 25°C 20ns/90ns
Test Condition 600V, 20A, 10Ohm, 15V
Reverse Recovery Time (trr) 195ns
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case TO-247-3
Supplier Device Package ISO247™
Base Part Number IXY*20N120
