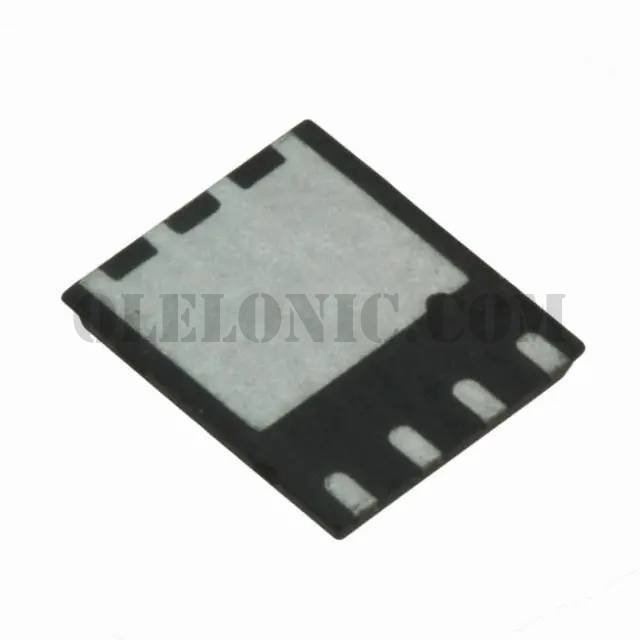

IRFH5301TRPBF

IRFH5301TRPBF

Part NumberIRFH5301TRPBF

ManufacturerInfineon Technologies

DescriptionMOSFET N-CH 30V 35A 5X6 PQFN

DatasheetIRFH5301PBF

Package / Case8-PowerVDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 30V 35A (Ta), 100A (Tc) 3.6W (Ta), 110W (Tc) Surface Mount PQFN (5x6) Single Die

To learn about the specification of IRFH5301TRPBF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IRFH5301TRPBF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IRFH5301TRPBF.
We are offering IRFH5301TRPBF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IRFH5301TRPBF - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IRFH5301PBF
Standard Package	4000
Manufacturer	Infineon Technologies
Series	HEXFET®
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	35A (Ta), 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	1.85mOhm @ 50A, 10V
Vgs(th) (Max) @ Id	2.35V @ 100µA
Gate Charge (Qg) (Max) @ Vgs	77nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	5114pF @ 15V
FET Feature	-
Power Dissipation (Max)	3.6W (Ta), 110W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PQFN (5x6) Single Die
Package / Case	8-PowerVDFN
