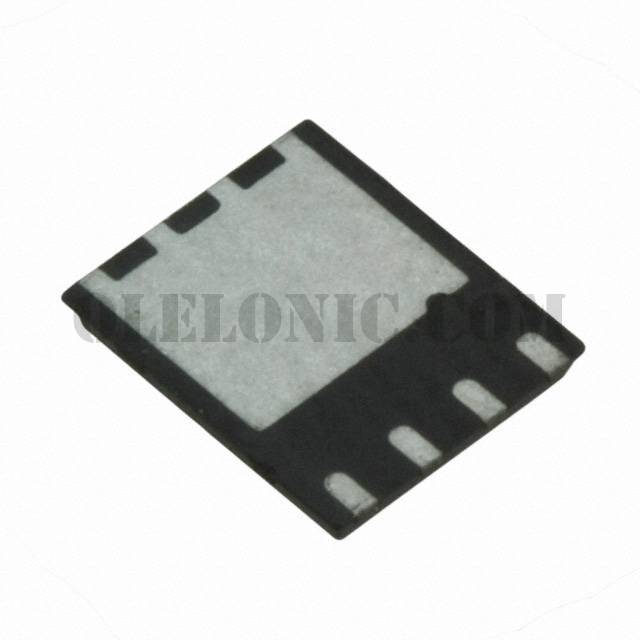

IRFH5006TRPBF

IRFH5006TRPBF

Part NumberIRFH5006TRPBF

ManufacturerInfineon Technologies

DescriptionMOSFET N-CH 60V 100A 8-PQFN

DatasheetIRFH5006PbF

Package / Case8-PowerTDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 60V 21A (Ta), 100A (Tc) 3.6W (Ta), 156W (Tc) Surface Mount 8-PQFN (5x6)

To learn about the specification of IRFH5006TRPBF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IRFH5006TRPBF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IRFH5006TRPBF.
We are offering IRFH5006TRPBF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IRFH5006TRPBF - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IRFH5006PbF
Standard Package	4000
Manufacturer	Infineon Technologies
Series	HEXFET®
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	21A (Ta), 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	4.1mOhm @ 50A, 10V
Vgs(th) (Max) @ Id	4V @ 150µA
Gate Charge (Qg) (Max) @ Vgs	100nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	4175pF @ 30V
FET Feature	-
Power Dissipation (Max)	3.6W (Ta), 156W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-PQFN (5x6)
Package / Case	8-PowerTDFN
