IRF60R217


IRF60R217

Part NumberIRF60R217

Manufacturer

Description

Datasheet

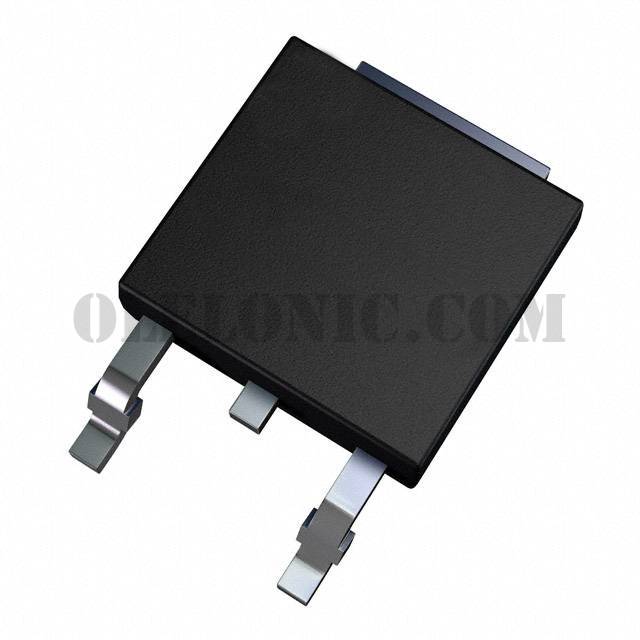

Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

IRF60R217 - Product Attributes

Categories Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet
Standard Package1
ManufacturerInfineon Technologies
SeriesStrongIRFET™
PackagingCut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60V
Current - Continuous Drain (Id) @ 25°C58A (Tc)
Drive Voltage (Max Rds On, Min Rds On)6V, 10V
Rds On (Max) @ Id, Vgs9.9mOhm @ 35A, 10V
Vgs(th) (Max) @ Id3.7V @ 50µA
Gate Charge (Qg) (Max) @ Vgs66nC @ 10V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds2170pF @ 25V
FET Feature-
Power Dissipation (Max)83W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageD-PAK (TO-252AA)
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
