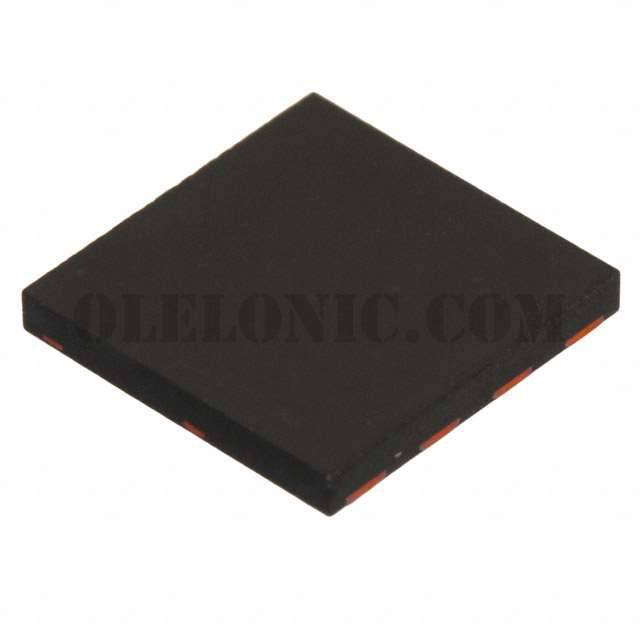

IPL60R199CPAUMA1

IPL60R199CPAUMA1

Part NumberIPL60R199CPAUMA1

ManufacturerInfineon Technologies

DescriptionMOSFET N-CH 650V 16.4A 4VSON

DatasheetIPL60R199CP

Package / Case4-PowerTSFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 650V 16.4A (Tc) 139W (Tc) Surface Mount PG-VSON-4

To learn about the specification of IPL60R199CPAUMA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IPL60R199CPAUMA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IPL60R199CPAUMA1.
We are offering IPL60R199CPAUMA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IPL60R199CPAUMA1 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IPL60R199CP
Standard Package	1
Manufacturer	Infineon Technologies
Series	CoolMOS™
Packaging	Cut Tape (CT)
Part Status	Not For New Designs
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	650V
Current - Continuous Drain (Id) @ 25°C	16.4A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	199mOhm @ 9.9A, 10V
Vgs(th) (Max) @ Id	3.5V @ 660µA
Gate Charge (Qg) (Max) @ Vgs	32nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1520pF @ 100V
FET Feature	-
Power Dissipation (Max)	139W (Tc)
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-VSON-4
Package / Case	4-PowerTSFN
