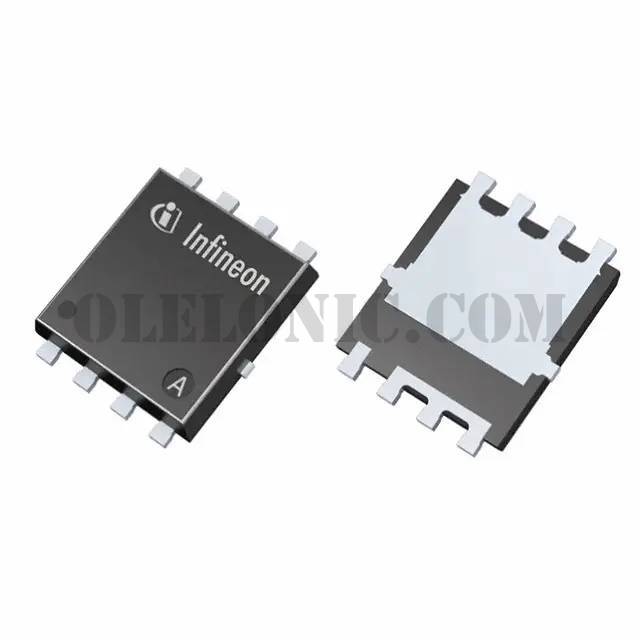

IPC100N04S5L2R6ATMA1
IPC100N04S5L2R6ATMA1
Part Number IPC100N04S5L2R6ATMA1
Description MOSFET N-CH 40V 100A 8TDSON-34
Package / Case 8-PowerTDFN
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description N-Channel 40V 100A (Tc) 75W (Tc) Surface Mount PG-TDSON-8-34
To learn about the specification of IPC100N04S5L2R6ATMA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IPC100N04S5L2R6ATMA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IPC100N04S5L2R6ATMA1.
We are offering IPC100N04S5L2R6ATMA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
IPC100N04S5L2R6ATMA1 - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet IPC100N04S5L-2R6
Standard Package 1
Manufacturer Infineon Technologies
Series Automotive, AEC-Q101, OptiMOS™
Packaging Cut Tape (CT)
Part Status Active
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 40V
Current - Continuous Drain (Id) @ 25°C 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Max) @ Id, Vgs 2.6mOhm @ 50A, 10V
Vgs(th) (Max) @ Id 2V @ 30µA
Gate Charge (Qg) (Max) @ Vgs 55nC @ 10V
Vgs (Max) ±16V
Input Capacitance (Ciss) (Max) @ Vds 2925pF @ 25V
FET Feature -
Power Dissipation (Max) 75W (Tc)
Operating Temperature -55°C ~ 175°C (TJ)
Mounting Type Surface Mount
Supplier Device Package PG-TDSON-8-34
Package / Case 8-PowerTDFN
