STD16N50M2

STD16N50M2

Part NumberSTD16N50M2

ManufacturerSTMicroelectronics

DescriptionMOSFET N-CH 500V 13A DPAK

DatasheetST(D,F,P)16N50M2

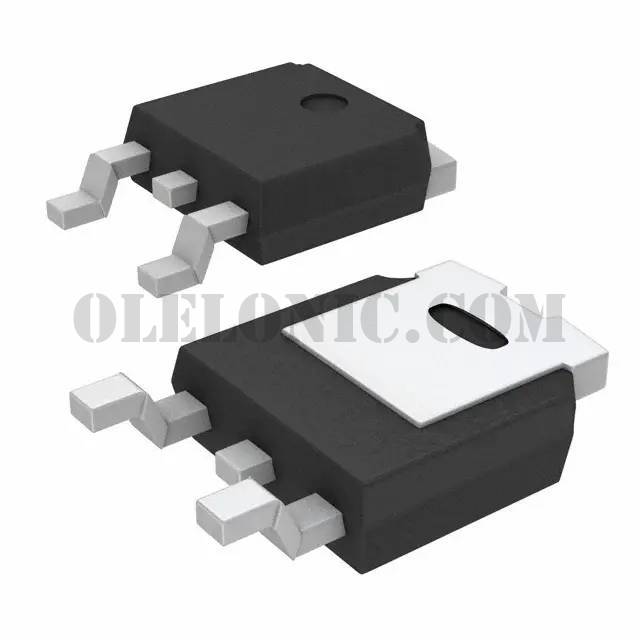

Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 500V 13A (Tc) 110W (Tc) Surface Mount TO-252, (D-Pak)

To learn about the specification of STD16N50M2, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STD16N50M2 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STD16N50M2.
We are offering STD16N50M2 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

STD16N50M2 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	ST(D,F,P)16N50M2
Standard Package	1
Manufacturer	STMicroelectronics
Series	MDmesh™
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	500V
Current - Continuous Drain (Id) @ 25°C	13A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	280mOhm @ 6.5A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	19.5nC @ 10V
Vgs (Max)	±25V
Input Capacitance (Ciss) (Max) @ Vds	710pF @ 100V
FET Feature	-
Power Dissipation (Max)	110W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-252, (D-Pak)
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
