Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - RF
Datasheet	HFA3102
Standard Package	1
Manufacturer	Renesas Electronics America Inc.
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Transistor Type	6 NPN
Voltage - Collector Emitter Breakdown (Max)	12V
Frequency - Transition	10GHz
Noise Figure (dB Typ @ f)	1.8dB ~ 2.1dB @ 500MHz ~ 1GHz
Gain	12.4dB ~ 17.5dB
Power - Max	250mW
DC Current Gain (hFE) (Min) @ Ic, Vce	40 @ 10mA, 3V
Current - Collector (Ic) (Max)	30mA
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount

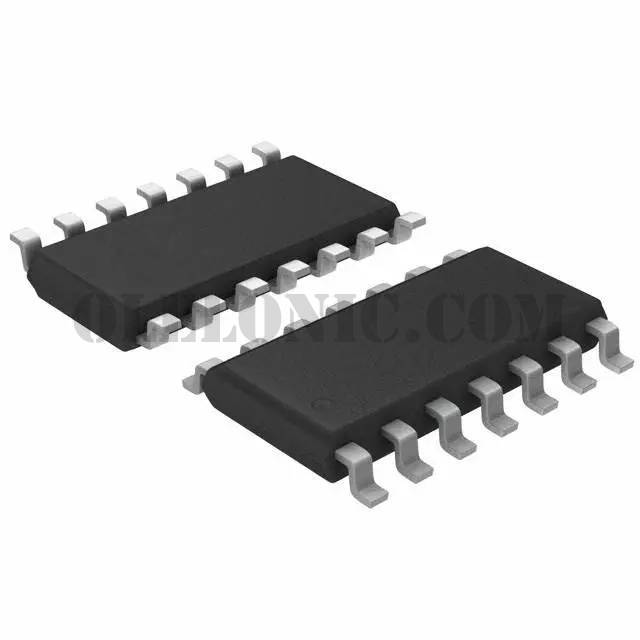

Package / Case	14-SOIC (0.154", 3.90mm Width)
Supplier Device Package	14-SOIC
Base Part Number	HFA3102
