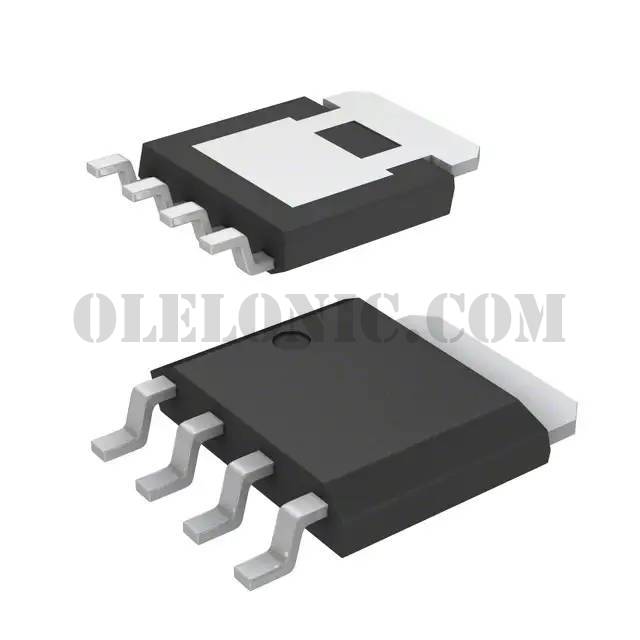

HAT2160H-EL-E

HAT2160H-EL-E

Part NumberHAT2160H-EL-E

ManufacturerRenesas Electronics America

DescriptionMOSFET N-CH 20V 60A LFPAK

DatasheetHAT2160H

Package / CaseSC-100, SOT-669

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 20V 60A (Ta) 30W (Tc) Surface Mount LFPAK

To learn about the specification of HAT2160H-EL-E, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add HAT2160H-EL-E with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of HAT2160H-EL-E.
We are offering HAT2160H-EL-E for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

HAT2160H-EL-E - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	HAT2160H
Standard Package	2500
Manufacturer	Renesas Electronics America
Series	-
Packaging	Tape & Reel (TR)
Part Status	Not For New Designs
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	60A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	2.6mOhm @ 30A, 10V
Vgs(th) (Max) @ Id	2.3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	54nC @ 4.5V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	7750pF @ 10V
FET Feature	-
Power Dissipation (Max)	30W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	LFPAK
Package / Case	SC-100, SOT-669
