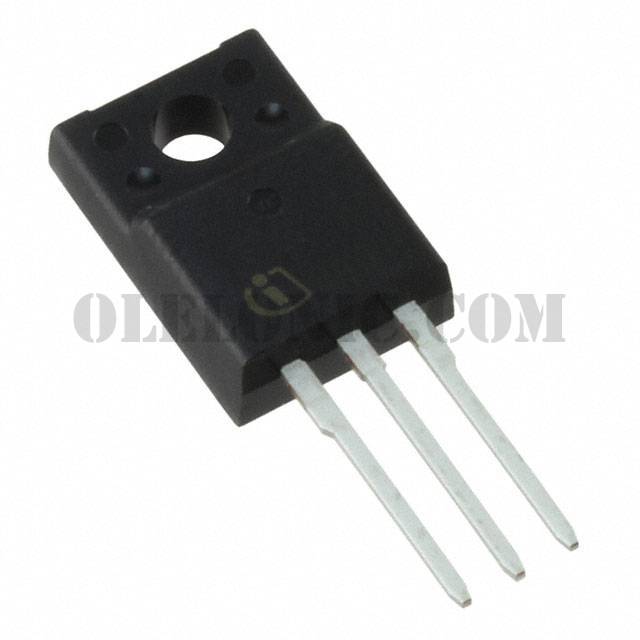

IPA70R600P7SXKSA1

IPA70R600P7SXKSA1

Part NumberIPA70R600P7SXKSA1

ManufacturerInfineon Technologies

DescriptionMOSFET N-CH 700V 8.5A TO220

DatasheetIPA70R600P7S

Package / CaseTO-220-3 Full Pack

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 700V 8.5A (Tc) 25W (Tc) Through Hole PG-TO220 Full Pack

To learn about the specification of IPA70R600P7SXKSA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IPA70R600P7SXKSA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IPA70R600P7SXKSA1.
We are offering IPA70R600P7SXKSA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IPA70R600P7SXKSA1 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IPA70R600P7S
Standard Package	500
Manufacturer	Infineon Technologies
Series	CoolMOS™ P7
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	700V
Current - Continuous Drain (Id) @ 25°C	8.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	600mOhm @ 1.8A, 10V
Vgs(th) (Max) @ Id	3.5V @ 90µA
Gate Charge (Qg) (Max) @ Vgs	10.5nC @ 10V
Vgs (Max)	±16V
Input Capacitance (Ciss) (Max) @ Vds	364pF @ 400V
FET Feature	-
Power Dissipation (Max)	25W (Tc)
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	PG-TO220 Full Pack
Package / Case	TO-220-3 Full Pack
