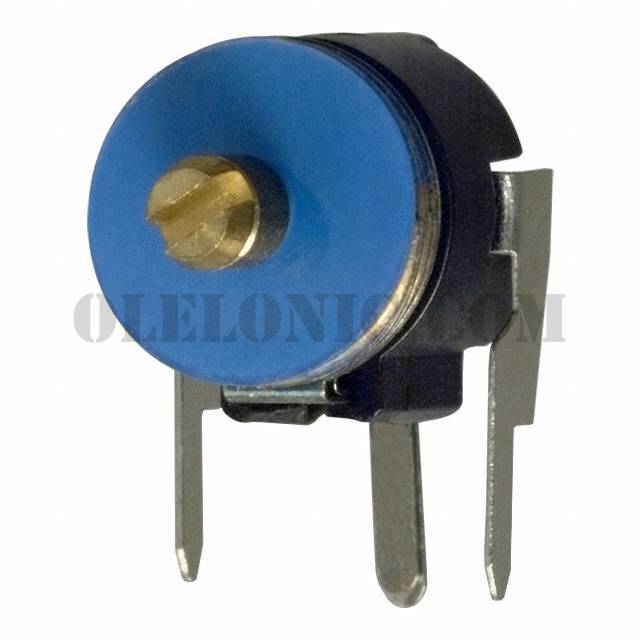

Categories	Capacitors / Trimmers, Variable Capacitors
Datasheet	GC,GSX,GX,GY,GZ Series
Standard Package	100
Manufacturer	Sprague-Goodman
Series	FILMTRIM®
Packaging	Bulk
Part Status	Active
Capacitance Range	2 ~ 15pF
Adjustment Type	Side
Voltage - Rated	100V
Dielectric Material	Polypropylene (PP)
Q @ Freq	1000 @ 1MHz
Size / Dimension	0.335" Dia (8.50mm)
Height - Seated (Max)	0.402" (10.20mm)
Operating Temperature	-40°C ~ 70°C
Mounting Type	Through Hole
Features	General Purpose

GYD65000	Sprague-Goodman, 4.5 ~ 65pF Trimmer Capacitor 100V Side Through Hole, FILMTRIM®	View
GXA45000	Sprague-Goodman, 5 ~ 45pF Trimmer Capacitor 100V Top and Bottom Through Hole, FILMTRIM®	View
GXA5R000	Sprague-Goodman, 1.6 ~ 5pF Trimmer Capacitor 100V Top and Bottom Through Hole, FILMTRIM®	View
GYA27000	Sprague-Goodman, 2.3 ~ 27pF Trimmer Capacitor 100V Top and Bottom Through Hole, FILMTRIM®	View
GYA5R000	Sprague-Goodman, 1.6 ~ 5pF Trimmer Capacitor 100V Top and Bottom Through Hole, FILMTRIM®	View
GXE5R000	Sprague-Goodman, 1.5 ~ 5pF Trimmer Capacitor 200V Top and Bottom Through Hole, FILMTRIM®	View
GZL5R000	Sprague-Goodman, 1.2 ~ 5pF Trimmer Capacitor 150V Top Through Hole, FILMTRIM®	View
GZC12100	Sprague-Goodman, 9 ~ 120pF Trimmer Capacitor 100V Top and Bottom Through Hole, FILMTRIM®	View
GZD10100	Sprague-Goodman, 9 ~ 100pF Trimmer Capacitor 100V Side Through Hole, FILMTRIM®	View
GXA9R002	Sprague-Goodman, 2 ~ 9pF Trimmer Capacitor 100V Top and Bottom Through Hole, FILMTRIM®	View
GYA10000	Sprague-Goodman, 2 ~ 10pF Trimmer Capacitor 100V Top and Bottom Through Hole, FILMTRIM®	View
GYB15000	Sprague-Goodman, 2 ~ 15pF Trimmer Capacitor 100V Side Through Hole, FILMTRIM®	View

GYB15000

Part NumberGYB15000
