Categories	Capacitors / Trimmers, Variable Capacitors
Datasheet	GC,GSX,GX,GY,GZ Series Datasheet
Standard Package	1
Manufacturer	Sprague-Goodman
Series	FILMTRIM®
Packaging	Bulk
Part Status	Active
Capacitance Range	5 ~ 45pF
Adjustment Type	Top and Bottom
Voltage - Rated	100V
Dielectric Material	Polytetrafluoroethylene (PTFE)
Q @ Freq	1500 @ 1MHz
Size / Dimension	0.335" L x 0.295" W (8.50mm x 7.50mm)
Height - Seated (Max)	0.449" (11.40mm)
Operating Temperature	-40°C ~ 85°C
Mounting Type	Through Hole
Features	General Purpose

GXE27002	Sprague-Goodman, 3.5 ~ 27pF Trimmer Capacitor 200V Top and Bottom Through Hole, FILMTRIM®	View
GYA27000	Sprague-Goodman, 2.3 ~ 27pF Trimmer Capacitor 100V Top and Bottom Through Hole, FILMTRIM®	View
GYC65000	Sprague-Goodman, 4.5 ~ 65pF Trimmer Capacitor 100V Top and Bottom Through Hole, FILMTRIM®	View
GYA10000	Sprague-Goodman, 2 ~ 10pF Trimmer Capacitor 100V Top and Bottom Through Hole, FILMTRIM®	View
GYA27002	Sprague-Goodman, 2.3 ~ 27pF Trimmer Capacitor 100V Top and Bottom Through Hole, FILMTRIM®	View
GYD15000	Sprague-Goodman, 2 ~ 15pF Trimmer Capacitor 100V Side Through Hole, FILMTRIM®	View
GXA5R000	Sprague-Goodman, 1.6 ~ 5pF Trimmer Capacitor 100V Top and Bottom Through Hole, FILMTRIM®	View
GYC15000	Sprague-Goodman, 2 ~ 15pF Trimmer Capacitor 100V Top and Bottom Through Hole, FILMTRIM®	View
GYC40000	Sprague-Goodman, 3 ~ 40pF Trimmer Capacitor 100V Top and Bottom Through Hole, FILMTRIM®	View
GZL5R000	Sprague-Goodman, 1.2 ~ 5pF Trimmer Capacitor 150V Top Through Hole, FILMTRIM®	View
GYD65000	Sprague-Goodman, 4.5 ~ 65pF Trimmer Capacitor 100V Side Through Hole, FILMTRIM®	View
GXA45002	Sprague-Goodman, 5 ~ 45pF Trimmer Capacitor 100V Top and Bottom Through Hole, FILMTRIM®	View

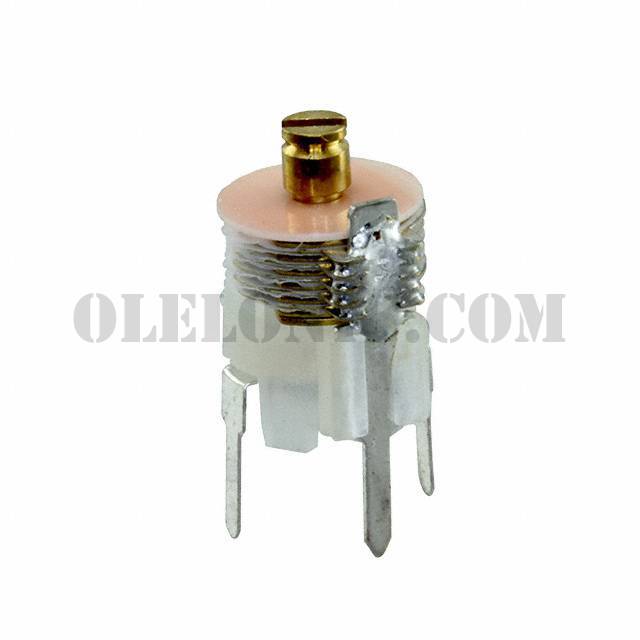

GXA45000

Part NumberGXA45000
