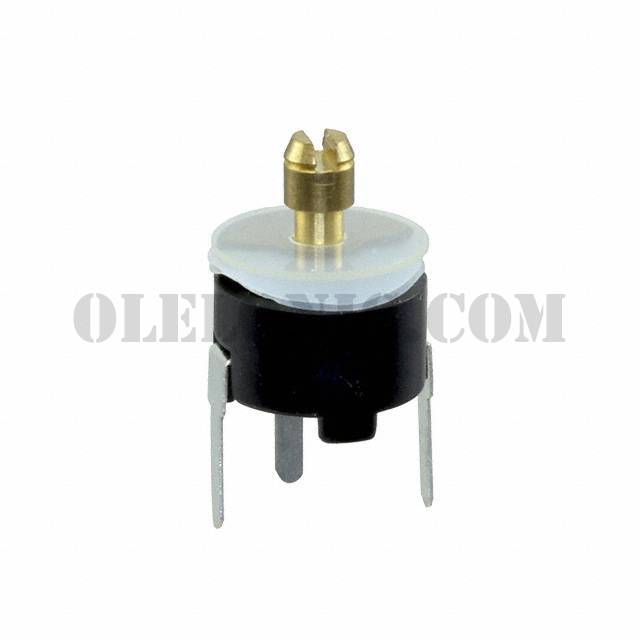

Categories	Capacitors / Trimmers, Variable Capacitors
Datasheet	GC,GSX,GX,GY,GZ Series Datasheet
Standard Package	1
Manufacturer	Sprague-Goodman
Series	FILMTRIM®
Packaging	Bulk
Part Status	Active
Capacitance Range	1.6 ~ 5pF
Adjustment Type	Top and Bottom
Voltage - Rated	100V
Dielectric Material	Polytetrafluoroethylene (PTFE)
Q @ Freq	1500 @ 1MHz
Size / Dimension	0.335" L x 0.295" W (8.50mm x 7.50mm)
Height - Seated (Max)	0.402" (10.20mm)
Operating Temperature	-40°C ~ 85°C
Mounting Type	Through Hole
Features	General Purpose

GYC20004	Sprague-Goodman, 3 ~ 20pF Trimmer Capacitor 100V Top and Bottom Through Hole, FILMTRIM®	View
GXE3R511	Sprague-Goodman, 1 ~ 3.5pF Trimmer Capacitor 300V Top and Bottom Through Hole, FILMTRIM®	View
GZA30000	Sprague-Goodman, 2.5 ~ 30pF Trimmer Capacitor 100V Top and Bottom Through Hole, FILMTRIM®	View
GYA22000	Sprague-Goodman, 2.2 ~ 22pF Trimmer Capacitor 100V Top and Bottom Through Hole, FILMTRIM®	View
GYB27000	Sprague-Goodman, 2.3 ~ 27pF Trimmer Capacitor 100V Side Through Hole, FILMTRIM®	View
GXE9R000	Sprague-Goodman, 1.8 ~ 9pF Trimmer Capacitor 200V Top and Bottom Through Hole, FILMTRIM®	View
GYD15000	Sprague-Goodman, 2 ~ 15pF Trimmer Capacitor 100V Side Through Hole, FILMTRIM®	View
GYC20000	Sprague-Goodman, 3 ~ 20pF Trimmer Capacitor 100V Top and Bottom Through Hole, FILMTRIM®	View
GXA45000	Sprague-Goodman, 5 ~ 45pF Trimmer Capacitor 100V Top and Bottom Through Hole, FILMTRIM®	View
GXE18011	Sprague-Goodman, 2.5 ~ 18pF Trimmer Capacitor 300V Top and Bottom Through Hole, FILMTRIM®	View
GZD10100	Sprague-Goodman, 9 ~ 100pF Trimmer Capacitor 100V Side Through Hole, FILMTRIM®	View
GXD60000	Sprague-Goodman, 6 ~ 60pF Trimmer Capacitor 100V Side Through Hole, FILMTRIM®	View

GXA5R000

Part NumberGXA5R000
