IRG4PC50UDPBF
IRG4PC50UDPBF

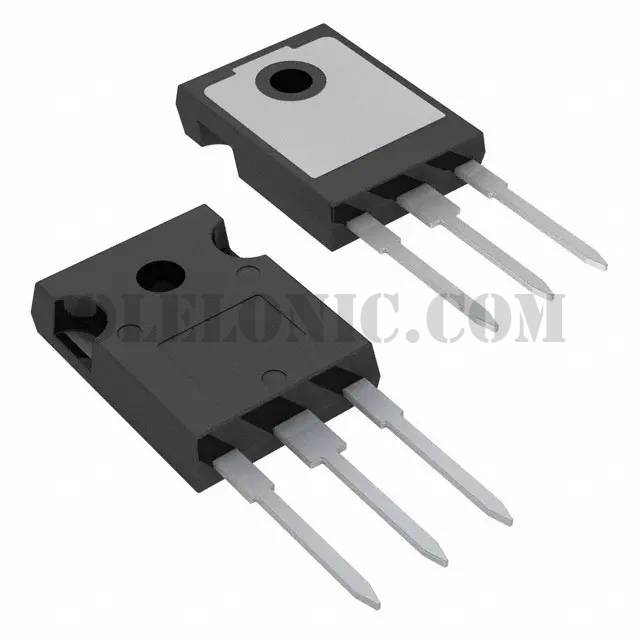

Part Number IRG4PC50UDPBF Description IGBT 600V 55A 200W TO247AC Package / Case TO-247-3Unit Price Request a QuoteLead Time To be ConfirmedDetailed Description IGBT 600V 55A 200W Through Hole TO-247AC
To learn about the specification of IRG4PC50UDPBF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IRG4PC50UDPBF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IRG4PC50UDPBF.
We are offering IRG4PC50UDPBF for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
IRG4PC50UDPBF - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet IRG4PC50UDPbF Standard Package 25 Manufacturer Infineon Technologies Series - Packaging Tube Part Status Not For New Designs IGBT Type - Voltage - Collector Emitter Breakdown (Max) 600V Current - Collector (Ic) (Max) 55A Current - Collector Pulsed (Icm) 220A Vce(on) (Max) @ Vge, Ic 2V @ 15V, 27A Power - Max 200W Switching Energy 990µJ (on), 590µJ (off) Input Type Standard Gate Charge 180nC Td (on/off) @ 25°C 46ns/140ns Test Condition 480V, 27A, 5Ohm, 15V Reverse Recovery Time (trr) 50ns Operating Temperature -55°C ~ 150°C (TJ) Mounting Type Through Hole Package / Case TO-247-3 Supplier Device Package TO-247AC
