FGAF40N60SMD
FGAF40N60SMD

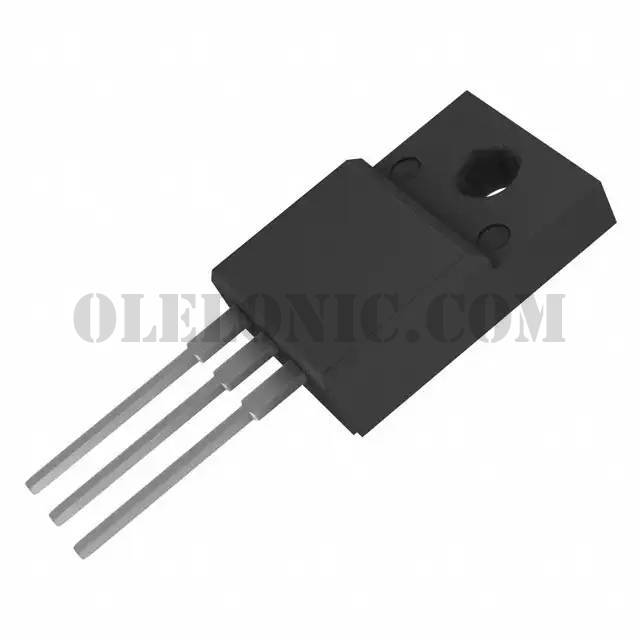

Part Number FGAF40N60SMD Description IGBT 600V 80A 79W TO-3PF Package / Case TO-3P-3 Full PackUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description IGBT Field Stop 600V 80A 115W Through Hole TO-3PF
To learn about the specification of FGAF40N60SMD, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FGAF40N60SMD with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FGAF40N60SMD.
We are offering FGAF40N60SMD for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
FGAF40N60SMD - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet FGAF40N60SMD Standard Package 360 Manufacturer ON Semiconductor Series - Packaging Tube Part Status Active IGBT Type Field Stop Voltage - Collector Emitter Breakdown (Max) 600V Current - Collector (Ic) (Max) 80A Current - Collector Pulsed (Icm) 120A Vce(on) (Max) @ Vge, Ic 1.9V @ 15V, 40A Power - Max 115W Switching Energy 870µJ (on), 260µJ (off) Input Type Standard Gate Charge 119nC Td (on/off) @ 25°C 12ns/92ns Test Condition 400V, 40A, 6Ohm, 15V Reverse Recovery Time (trr) 36ns Operating Temperature -55°C ~ 175°C (TJ) Mounting Type Through Hole Package / Case TO-3P-3 Full Pack Supplier Device Package TO-3PF
