IXBH20N360HV
IXBH20N360HV

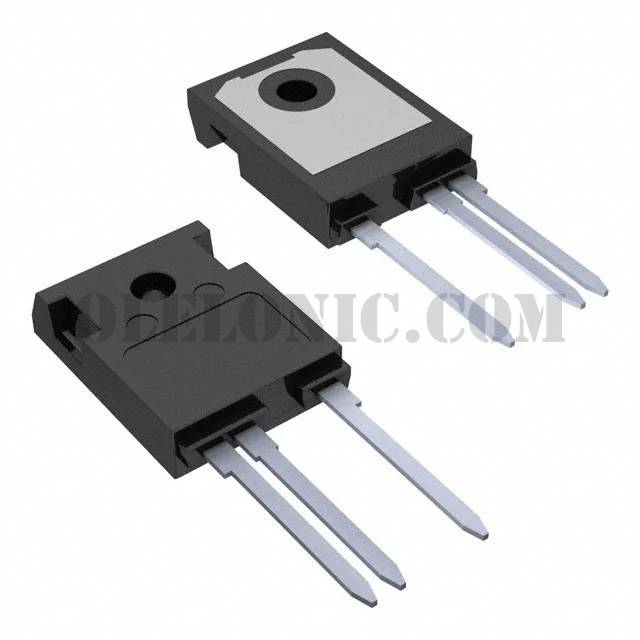

Part Number IXBH20N360HV Manufacturer IXYS Description IGBT 3600V 70A TO-247HV Package / Case TO-247-3 VariantUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description IGBT 3600V 70A 430W Through Hole TO-247HV
To learn about the specification of IXBH20N360HV, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IXBH20N360HV with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IXBH20N360HV.
We are offering IXBH20N360HV for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
IXBH20N360HV - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet IXB(T,H)20N360HV Standard Package 30 Manufacturer IXYS Series BIMOSFET™ Packaging Tube Part Status Active IGBT Type - Voltage - Collector Emitter Breakdown (Max) 3600V Current - Collector (Ic) (Max) 70A Current - Collector Pulsed (Icm) 220A Vce(on) (Max) @ Vge, Ic 3.4V @ 15V, 20A Power - Max 430W Switching Energy 15.5mJ (on), 4.3mJ (off) Input Type Standard Gate Charge 110nC Td (on/off) @ 25°C 18ns/238ns Test Condition 1500V, 20A, 10Ohm, 15V Reverse Recovery Time (trr) 1.7µs Operating Temperature -55°C ~ 150°C (TJ) Mounting Type Through Hole Package / Case TO-247-3 Variant Supplier Device Package TO-247HV
