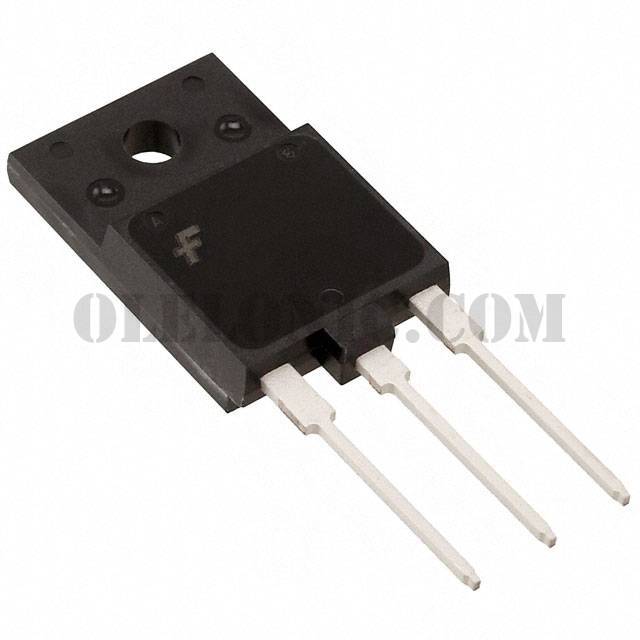

FGAF20N60SMD

FGAF20N60SMD

Part NumberFGAF20N60SMD

ManufacturerON Semiconductor

DescriptionIGBT 600V 40A 62.5W TO-3PF

DatasheetFGAF20N60SMD

Package / CaseTO-3P-3 Full Pack

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Field Stop 600V 40A 75W Through Hole TO-3PF

To learn about the specification of FGAF20N60SMD, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FGAF20N60SMD with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FGAF20N60SMD.
We are offering FGAF20N60SMD for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FGAF20N60SMD - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet	FGAF20N60SMD
Standard Package	360
Manufacturer	ON Semiconductor
Series	-
Packaging	Tube
Part Status	Active
IGBT Type	Field Stop
Voltage - Collector Emitter Breakdown (Max)	600V
Current - Collector (Ic) (Max)	40A
Current - Collector Pulsed (Icm)	60A
Vce(on) (Max) @ Vge, Ic	1.7V @ 15V, 20A
Power - Max	75W
Switching Energy	452µJ (on), 141µJ (off)
Input Type	Standard
Gate Charge	64nC
Td (on/off) @ 25°C	12ns/91ns
Test Condition	400V, 20A, 10Ohm, 15V
Reverse Recovery Time (trr)	26.7ns
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-3P-3 Full Pack
Supplier Device Package	TO-3PF
