SPD50P03LGBTMA1

SPD50P03LGBTMA1

Part NumberSPD50P03LGBTMA1

ManufacturerInfineon Technologies

DescriptionMOSFET P-CH 30V 50A TO-252

DatasheetSPD50P03L G

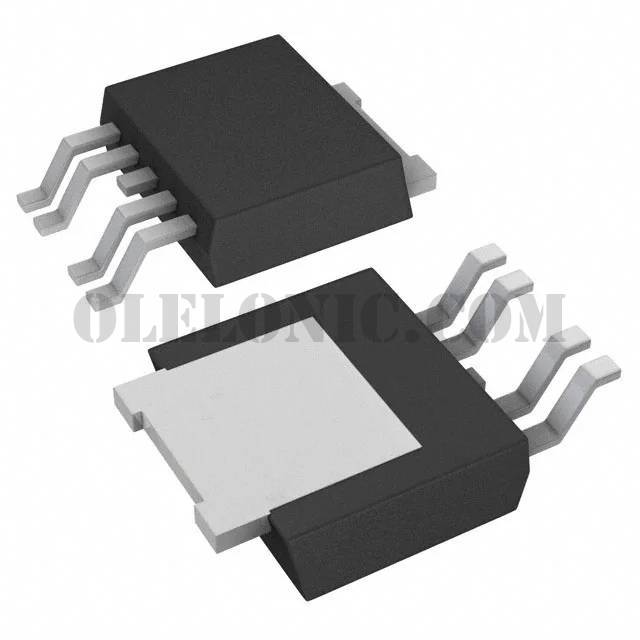

Package / CaseTO-252-5, DPak (4 Leads + Tab), TO-252AD

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 30V 50A (Tc) 150W (Tc) Surface Mount PG-TO252-5

To learn about the specification of SPD50P03LGBTMA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SPD50P03LGBTMA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SPD50P03LGBTMA1.
We are offering SPD50P03LGBTMA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SPD50P03LGBTMA1 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	SPD50P03L G
Standard Package	2500
Manufacturer	Infineon Technologies
Series	OptiMOS™
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	50A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	7mOhm @ 50A, 10V
Vgs(th) (Max) @ Id	2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	126nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	6880pF @ 25V
FET Feature	-
Power Dissipation (Max)	150W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-TO252-5
Package / Case	TO-252-5, DPak (4 Leads + Tab), TO-252AD
