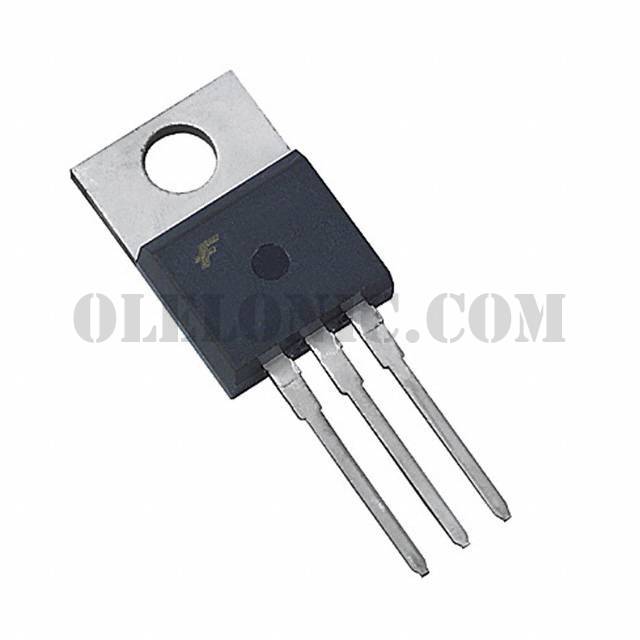

FDP8N50NZ

FDP8N50NZ

Part NumberFDP8N50NZ

ManufacturerON Semiconductor

DescriptionMOSFET N-CH 500V TO-220AB-3

DatasheetFDP(F)8N50NZ

Package / CaseTO-220-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 500V 8A (Tc) 130W (Tc) Through Hole TO-220-3

To learn about the specification of FDP8N50NZ, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDP8N50NZ with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDP8N50NZ.
We are offering FDP8N50NZ for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDP8N50NZ - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	FDP(F)8N50NZ
Standard Package	1000
Manufacturer	ON Semiconductor
Series	UniFET™
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	500V
Current - Continuous Drain (Id) @ 25°C	8A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	850mOhm @ 4A, 10V
Vgs(th) (Max) @ Id	5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	18nC @ 10V
Vgs (Max)	±25V
Input Capacitance (Ciss) (Max) @ Vds	735pF @ 25V
FET Feature	-
Power Dissipation (Max)	130W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220-3
Package / Case	TO-220-3
