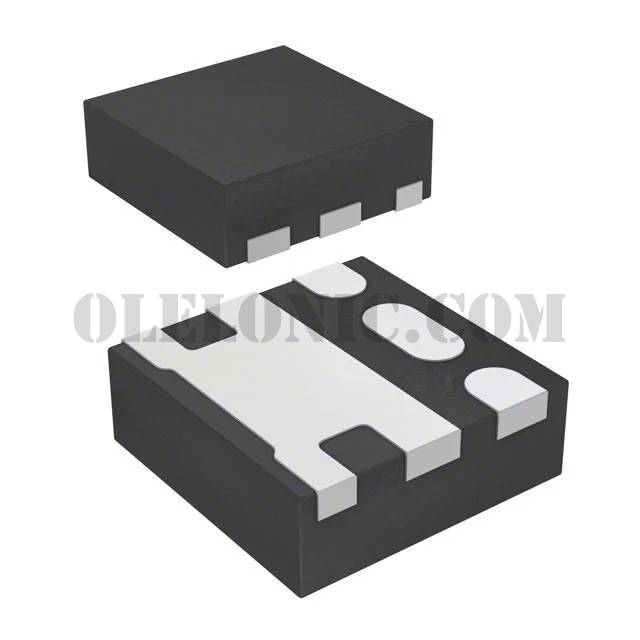

FDME510PZT

FDME510PZT

Part NumberFDME510PZT

ManufacturerON Semiconductor

DescriptionMOSFET P-CH 20V 6-MICROFET

DatasheetFDME510PZT

Package / Case6-PowerUFDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 20V 6A (Ta) 2.1W (Ta) Surface Mount MicroFet 1.6x1.6 Thin

To learn about the specification of FDME510PZT, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDME510PZT with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDME510PZT.
We are offering FDME510PZT for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDME510PZT - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	FDME510PZT
Standard Package	5000
Manufacturer	ON Semiconductor
Series	PowerTrench®
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	6A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	37mOhm @ 6A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	22nC @ 4.5V
Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	1490pF @ 10V
FET Feature	-
Power Dissipation (Max)	2.1W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	MicroFet 1.6x1.6 Thin
Package / Case	6-PowerUFDFN
