ZXM64P02XTA

ZXM64P02XTA

Part NumberZXM64P02XTA

ManufacturerDiodes Incorporated

DescriptionMOSFET P-CH 20V 3.5A 8-MSOP

DatasheetZXM64P02XTC

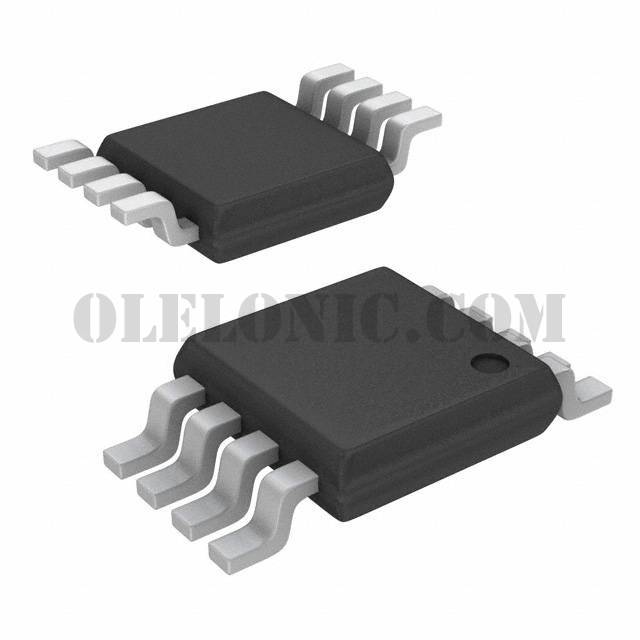

Package / Case8-TSSOP, 8-MSOP (0.118", 3.00mm Width)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 20V 3.5A (Ta) 1.1W (Ta) Surface Mount 8-MSOP

To learn about the specification of ZXM64P02XTA, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ZXM64P02XTA with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ZXM64P02XTA.
We are offering ZXM64P02XTA for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

ZXM64P02XTA - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	ZXM64P02XTC
Standard Package	1
Manufacturer	Diodes Incorporated
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	3.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.7V, 4.5V
Rds On (Max) @ Id, Vgs	90mOhm @ 2.4A, 4.5V
Vgs(th) (Max) @ Id	700mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs	6.9nC @ 4.5V
Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	900pF @ 15V
FET Feature	-
Power Dissipation (Max)	1.1W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-MSOP
Package / Case	8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
