FDMB3800N

FDMB3800N

Part NumberFDMB3800N

ManufacturerON Semiconductor

DescriptionMOSFET 2N-CH 30V 4.8A MICROFET

DatasheetFDMB3800N

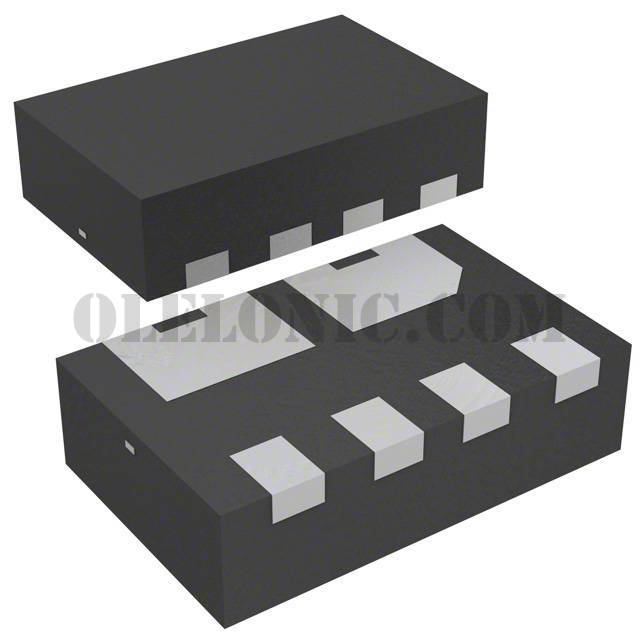

Package / Case8-PowerWDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) 30V 4.8A 750mW Surface Mount 8-MLP, MicroFET (3x1.9)

To learn about the specification of FDMB3800N, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDMB3800N with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDMB3800N.
We are offering FDMB3800N for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDMB3800N - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	FDMB3800N
Standard Package	3000
Manufacturer	ON Semiconductor
Series	PowerTrench®
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	4.8A
Rds On (Max) @ Id, Vgs	40mOhm @ 4.8A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	5.6nC @ 5V
Input Capacitance (Ciss) (Max) @ Vds	465pF @ 15V
Power - Max	750mW
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerWDFN
Supplier Device Package	8-MLP, MicroFET (3x1.9)
