FDC653N

FDC653N

Part NumberFDC653N

ManufacturerON Semiconductor

DescriptionMOSFET N-CH 30V 5A SSOT-6

DatasheetFDC653N

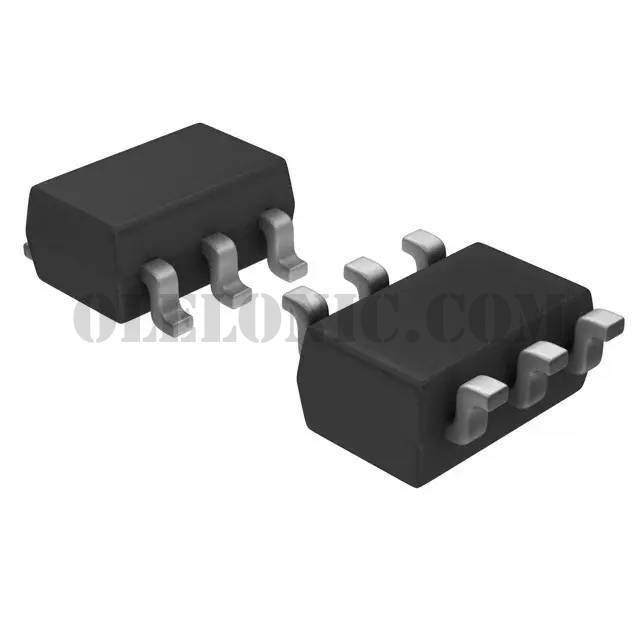

Package / CaseSOT-23-6 Thin, TSOT-23-6

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 30V 5A (Ta) 1.6W (Ta) Surface Mount SuperSOT™-6

To learn about the specification of FDC653N, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDC653N with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDC653N.
We are offering FDC653N for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDC653N - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	FDC653N
Standard Package	3000
Manufacturer	ON Semiconductor
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	35mOhm @ 5A, 10V
Vgs(th) (Max) @ Id	2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	17nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	350pF @ 15V
FET Feature	-
Power Dissipation (Max)	1.6W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SuperSOT™-6
Package / Case	SOT-23-6 Thin, TSOT-23-6
