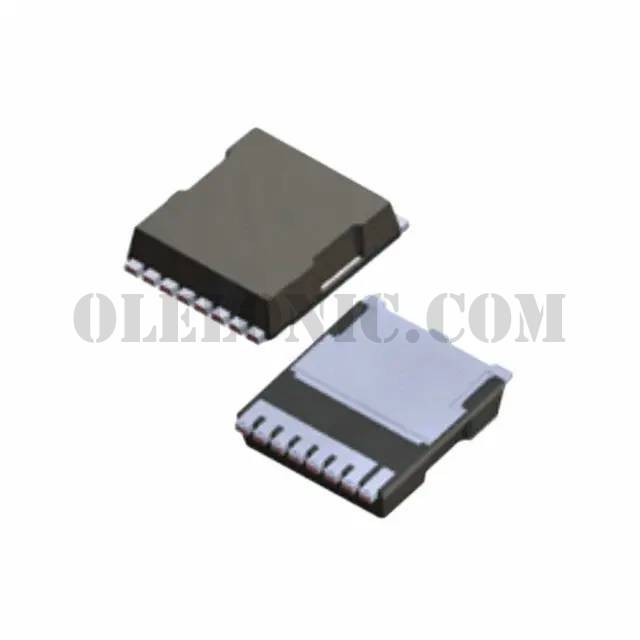

FDBL0630N150

FDBL0630N150

Part NumberFDBL0630N150

ManufacturerON Semiconductor

DescriptionMOSFET N-CH 150V 169A H-PSOF8

DatasheetFDBL0630N150

Package / Case8-PowerSFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 150V 169A (Tc) 500W (Tj) Surface Mount 8-HPSOF

To learn about the specification of FDBL0630N150, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDBL0630N150 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDBL0630N150.
We are offering FDBL0630N150 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDBL0630N150 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	FDBL0630N150
Standard Package	1
Manufacturer	ON Semiconductor
Series	PowerTrench®
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	150V
Current - Continuous Drain (Id) @ 25°C	169A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	6.3mOhm @ 80A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	90nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	5805pF @ 75V
FET Feature	-
Power Dissipation (Max)	500W (Tj)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-HPSOF
Package / Case	8-PowerSFN
