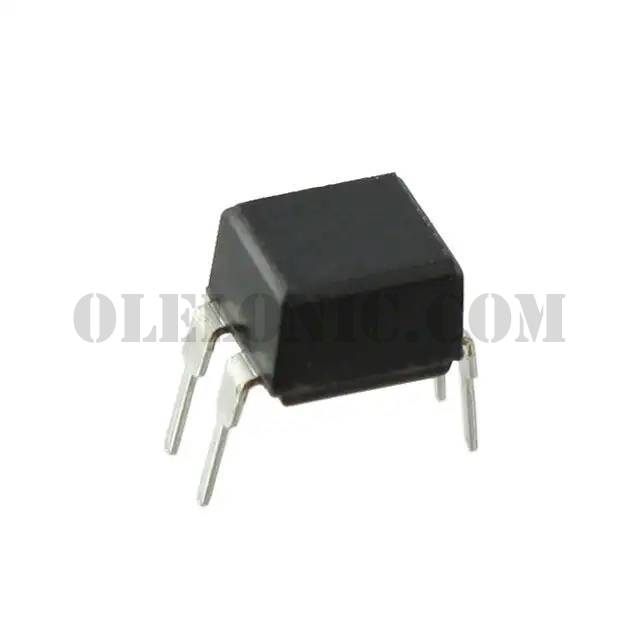

IRFD120PBF

IRFD120PBF

Part NumberIRFD120PBF

ManufacturerVishay Siliconix

DescriptionMOSFET N-CH 100V 1.3A 4-DIP

DatasheetIRFD120

Package / Case4-DIP (0.300", 7.62mm)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 100V 1.3A (Ta) 1.3W (Ta) Through Hole 4-DIP, Hexdip, HVMDIP

To learn about the specification of IRFD120PBF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IRFD120PBF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IRFD120PBF.
We are offering IRFD120PBF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IRFD120PBF - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IRFD120
Standard Package	2500
Manufacturer	Vishay Siliconix
Series	-
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25°C	1.3A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	270mOhm @ 780mA, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	16nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	360pF @ 25V
FET Feature	-
Power Dissipation (Max)	1.3W (Ta)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	4-DIP, Hexdip, HVMDIP
Package / Case	4-DIP (0.300", 7.62mm)
