FCU900N60Z


FCU900N60Z

Part NumberFCU900N60Z

Manufacturer

Description

Datasheet

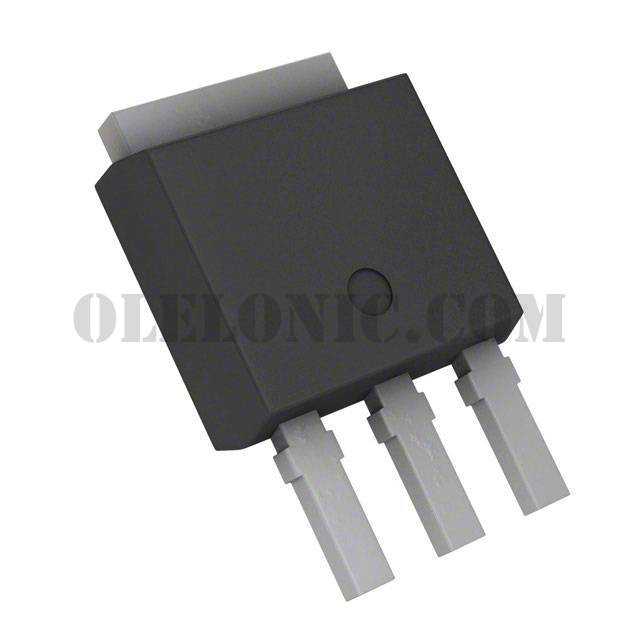

Package / CaseTO-251-3 Short Leads, IPak, TO-251AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

FCU900N60Z - Product Attributes

Categories Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet
Standard Package1800
ManufacturerON Semiconductor
SeriesSuperFET® II
PackagingTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)600V
Current - Continuous Drain (Id) @ 25°C4.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs900mOhm @ 2.3A, 10V
Vgs(th) (Max) @ Id3.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs17nC @ 10V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds710pF @ 25V
FET Feature-
Power Dissipation (Max)52W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageI-PAK
Package / CaseTO-251-3 Short Leads, IPak, TO-251AA
