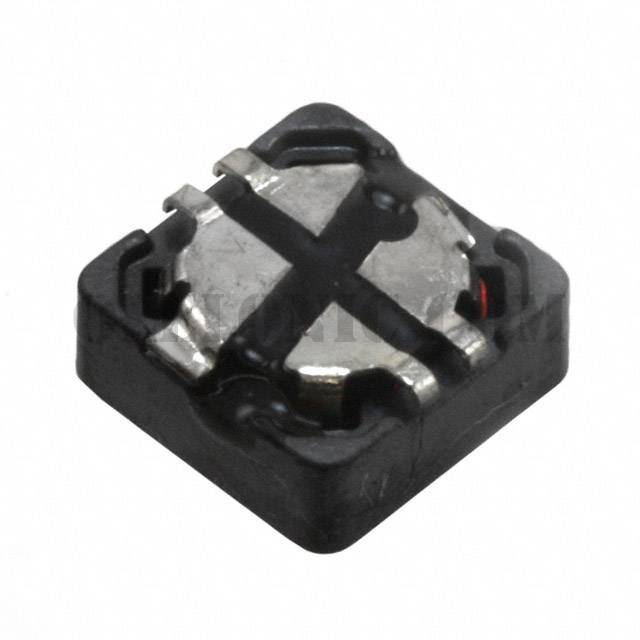

DRQ73-150-R


DRQ73-150-R

Part NumberDRQ73-150-R

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

DRQ73-150-R - Product Attributes

Categories Inductors, Coils, Chokes / Arrays, Signal Transformers
Datasheet
Standard Package1350
ManufacturerEaton - Electronics Division
SeriesDRQ
PackagingTape & Reel (TR)
Part StatusActive
Number of Coils2
Inductance - Connected In Parallel15.01µH
Inductance - Connected In Series60.04µH
Tolerance±20%
Current Rating - Parallel1.83A
Current Rating - Series916mA
Current Saturation - Parallel2.05A
Current Saturation - Series1.03A
DC Resistance (DCR) - Parallel84.4mOhm
DC Resistance (DCR) - Series339mOhm
ShieldingShielded
Ratings-
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / CaseNonstandard
Size / Dimension0.299" L x 0.299" W (7.60mm x 7.60mm)
Height0.140" (3.55mm)
