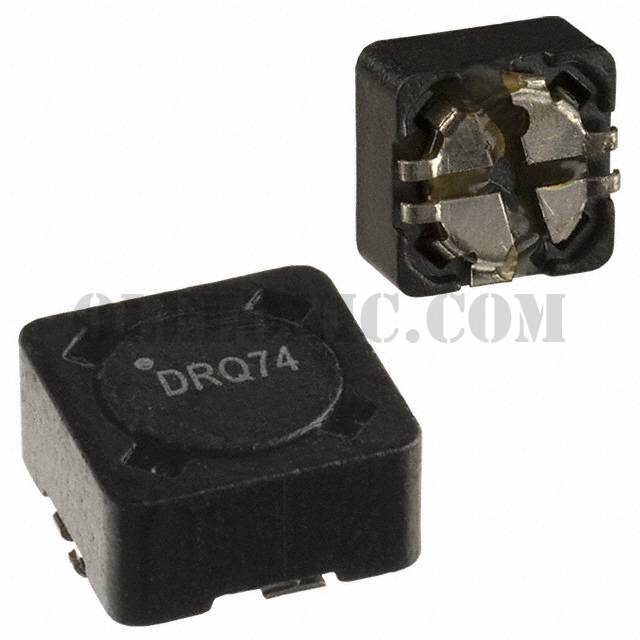

DRQ74-100-R

Part NumberDRQ74-100-R

ManufacturerEaton - Electronics Division

DescriptionINDUCT ARRAY 2 COIL 9.882UH SMD

DatasheetDRQ Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionShielded 2 Coil Inductor Array 39.53µH Inductance - Connected in Series 9.882µH Inductance - Connected in Parallel 48.9mOhm DC Resistance (DCR) - Parallel 2.41A Nonstandard

To learn about the specification of DRQ74-100-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DRQ74-100-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DRQ74-100-R.
We are offering DRQ74-100-R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DRQ74-100-R - Product Attributes

Categories	Inductors, Coils, Chokes / Arrays, Signal Transformers
Datasheet	DRQ Series
Standard Package	1100
Manufacturer	Eaton - Electronics Division
Series	DRQ
Packaging	Tape & Reel (TR)
Part Status	Active
Number of Coils	2
Inductance - Connected In Parallel	9.882µH
Inductance - Connected In Series	39.53µH
Tolerance	±20%
Current Rating - Parallel	2.41A
Current Rating - Series	1.2A
Current Saturation - Parallel	3.17A
Current Saturation - Series	1.58A
DC Resistance (DCR) - Parallel	48.9mOhm
DC Resistance (DCR) - Series	196mOhm
Shielding	Shielded
Ratings	-
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.299" L x 0.299" W (7.60mm x 7.60mm)
Height	0.175" (4.45mm)
