DMP2104V-7

DMP2104V-7

Part NumberDMP2104V-7

ManufacturerDiodes Incorporated

DescriptionMOSFET P-CH 20V 2.1A SOT563

DatasheetDMP2104V

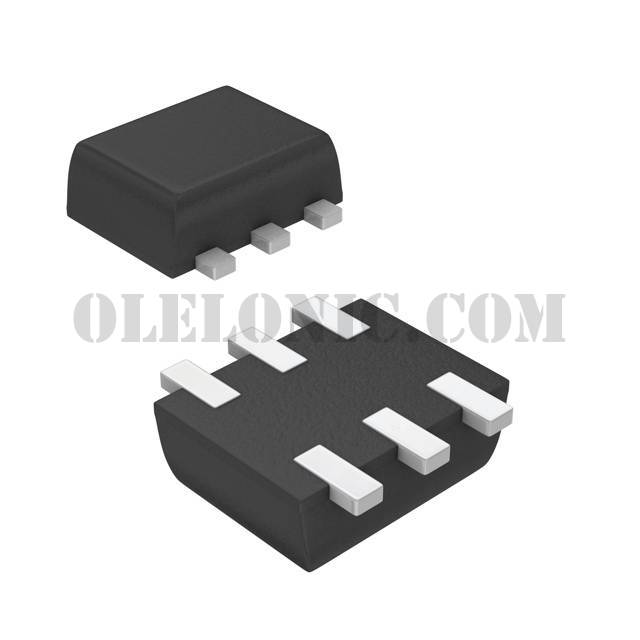

Package / CaseSOT-563, SOT-666

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 20V 2.1A (Ta) 850mW (Ta) Surface Mount SOT-563

To learn about the specification of DMP2104V-7, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DMP2104V-7 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DMP2104V-7.
We are offering DMP2104V-7 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DMP2104V-7 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	DMP2104V
Standard Package	1
Manufacturer	Diodes Incorporated
Series	Automotive, AEC-Q101
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	2.1A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	150mOhm @ 950mA, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	320pF @ 16V
FET Feature	-
Power Dissipation (Max)	850mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-563
Package / Case	SOT-563, SOT-666
